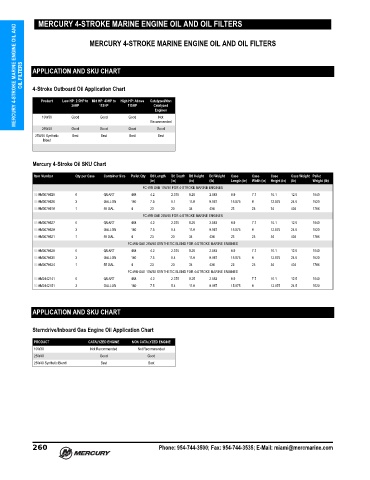

Page 269 - Latin America Accessories Guide (2020) - 8M0163252

MERCURY 4-STROKE MARINE ENGINE OIL AND OIL FILTERS
MERCURY 4-STROKE MARINE ENGINE OIL AND OIL FILTERS APPLICATION AND SKU CHART High HP: Above Catalyzed/Non

MERCURY 4-STROKE MARINE ENGINE OIL AND OIL FILTERS

4‑Stroke Outboard Oil Application Chart
Low HP: 2.5HP to Mid HP: 40HP to
Product
Catalyzed
Engines
Good
10W30
Good
Not
Good
Good
Good
Good
Good
25W40 30HP 115HP 115HP Recommended
25W40 Synthetic Best Best Best Best
Blend

Mercury 4‑Stroke Oil SKU Chart
Item Number Qty per Case Container Size Pallet Qty Btl Length Btl Depth Btl Height Btl Weight Case Case Case Case Weight Pallet
(in) (in) (in) (lb) Length (in) Width (in) Height (in) (lb) Weight (lb)
FC-W® SAE 10W30 FOR 4-STROKE MARINE ENGINES
92-8M0078625 6 QUART 468 4.2 2.375 9.25 2.083 8.9 7.7 10.1 12.5 1040
92-8M0078626 3 GALLON 180 7.5 5.1 11.8 8.167 15.875 8 12.875 24.5 1520
92-8M0078618 1 55 GAL 4 23 23 34 434 23 23 34 434 1786
FC-W® SAE 25W40 FOR 4-STROKE MARINE ENGINES
92-8M0078627 6 QUART 468 4.2 2.375 9.25 2.083 8.9 7.7 10.1 12.5 1040
92-8M0078628 3 GALLON 180 7.5 5.4 11.8 8.167 15.875 8 12.875 24.5 1520
92-8M0078621 1 55 GAL 4 23 23 34 434 23 23 34 434 1786
FC-W® SAE 25W40 SYNTHETIC BLEND FOR 4-STROKE MARINE ENGINES
92-8M0078629 6 QUART 468 4.2 2.375 9.25 2.083 8.9 7.7 10.1 12.5 1040
92-8M0078630 3 GALLON 180 7.5 5.4 11.8 8.167 15.875 8 12.875 24.5 1520
92-8M0078624 1 55 GAL 4 23 23 34 434 23 23 34 434 1786
FC-W® SAE 10W30 SYNTHETIC BLEND FOR 4-STROKE MARINE ENGINES
92-8M0142141 6 QUART 468 4.2 2.375 9.25 2.083 8.9 7.7 10.1 12.5 1040
92-8M0142151 3 GALLON 180 7.5 5.4 11.8 8.167 15.875 8 12.875 24.5 1520

APPLICATION AND SKU CHART

Sterndrive/Inboard Gas Engine Oil Application Chart

PRODUCT CATALYZED ENGINE NON CATALYZED ENGINE
10W30 Not Recommended Not Recommended
25W40 Good Good
25W40 Synthetic Blend Best Best

260 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
