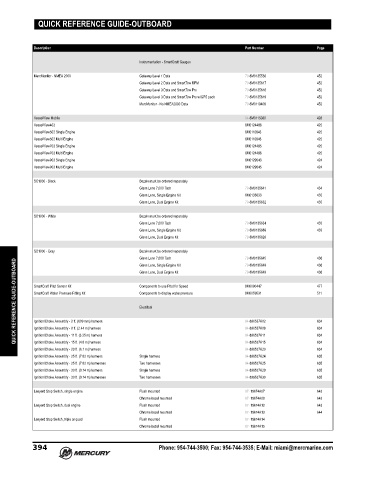

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Instrumentation - SmartCraft Gauges

MercMonitor - NMEA 2000 Gateway Level 1 Data 79-8M0135536 452
Gateway Level 2 Data and SmartTow RPM 79-8M0135617 452
Gateway Level 3 Data and SmartTow Pro 79-8M0135618 452
Gateway Level 3 Data and SmartTow Pro w/GPS puck 79-8M0135619 452
MercMonitor - No NMEA2000 Data 79-8M0119406 452

VesselView Mobile 84-8M0115080 428
VesselView403 8M0124498 425
VesselView502 Single Engine 8M0110643 425
VesselView502 Multi Engine 8M0110646 425
VesselView703 Single Engine 8M0124495 425
VesselView703 Multi Engine 8M0124496 425
VesselView903 Single Engine 8M0129543 424
VesselView903 Multi Engine 8M0129545 424

SC1000 - Black Bezels must be ordered separately
Glass Lens 7,000 Tach 79-8M0135641 434
Glass Lens, Single Engine Kit 8M0135633 435
Glass Lens, Dual Engine Kit 79-8M0135632 435

SC1000 - White Bezels must be ordered separately
Glass Lens 7,000 Tach 79-8M0135634 433
Glass Lens, Single Engine Kit 79-8M0135688 433
Glass Lens, Dual Engine Kit 79-8M0135626

SC1000 - Gray Bezels must be ordered separately
Glass Lens 7,000 Tach 79-8M0135645 436
QUICK REFERENCE GUIDE-OUTBOARD SmartCraft Pitot Sensor Kit Components to use Pitot for Speed 8M0090447 477
Glass Lens, Single Engine Kit
79-8M0135648
436
Glass Lens, Dual Engine Kit
436
79-8M0135649

8M0059531
511
SmartCraft Water Pressure Fitting Kit
Components to display water pressure

Electrical

84-896537K02
Ignition/Choke Assembly - 2 ft. (609 mm) harness
634
Ignition/Choke Assembly - 8 ft. (2.44 m) harness
634
84-896537K11
Ignition/Choke Assembly - 11 ft. (3.35 m) harness
84-896537K15
Ignition/Choke Assembly - 15 ft. (4.6 m) harness
634
634
84-896537K20
Ignition/Choke Assembly - 20 ft. (6.1 m) harness 84-896537K08 634
Ignition/Choke Assembly - 25 ft. (7.62 m) harness Single harness 84-896537K24 635
Ignition/Choke Assembly - 25 ft. (7.62 m) harnesses Two harnesses 84-896537K25 635
Ignition/Choke Assembly - 30 ft. (9.14 m) harness Single harness 84-896537K29 635
Ignition/Choke Assembly - 30 ft. (9.14 m) harnesses Two harnesses 84-896537K30 635

Lanyard Stop Switch, single engine Flush mounted 87- 19674A07 643
Chrome bezel mounted 87- 19674A08 643
Lanyard Stop Switch, dual engine Flush mounted 87- 19674A12 643
Chrome bezel mounted 87- 19674A13 644
Lanyard Stop Switch, triple or quad Flush mounted 87- 19674A14
Chrome bezel mounted 87- 19674A15
394 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
