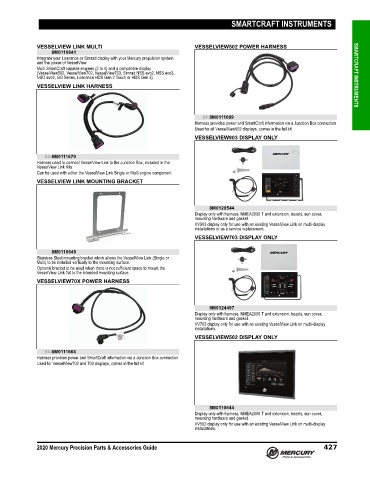

Page 436 - Latin America Accessories Guide (2020) - 8M0163252

SMARTCRAFT INSTRUMENTS

VESSELVIEW LINK MULTI VESSELVIEW502 POWER HARNESS
8M0110641
Integrate your Lowrance or Simrad display with your Mercury propulsion system
and the power of VesselView.
Multi SmartCraft capable engines (2 to 4) and a compatible display
(VesselView502, VesselView702, VesselView703, Simrad NSS evo2, NSS evo3,
NSO evo2, GO Series, Lowrance HDS Gen 2 Touch or HDS Gen 3) SMARTCRAFT INSTRUMENTS
VESSELVIEW LINK HARNESS

84-8M0111669
Harness provides power and SmartCraft information via a Junction Box connection
Used for all VesselView502 displays, comes in the full kit
VESSELVIEW903 DISPLAY ONLY

84-8M0111670
Harness used to connect VesselView Link to the Junction Box, included in the
VesselView Link Kits
Can be used with either the VesselView Link Single or Multi engine component
VESSELVIEW LINK MOUNTING BRACKET

8M0129544
Display only with harness, NMEA2000 T and extension, bezels, sun cover,
mounting hardware and gasket.
VV903 display only for use with an exisitng VesselView Link on multi‑display
installations or as a service replacement..
VESSELVIEW703 DISPLAY ONLY

8M0110649
Stainless Steel mounting bracket which allows the VesselView Link (Single or
Multi) to be installed vertically to the mounting surface.
Optional bracket to be used when there is not sufficient space to mount the
VesselView Link flat to the intended mounting surface.
VESSELVIEW70X POWER HARNESS

8M0124497
Display only with harness, NMEA2000 T and extension, bezels, sun cover,
mounting hardware and gasket.
VV703 display only for use with an exisitng VesselView Link on multi‑display
installations.
VESSELVIEW502 DISPLAY ONLY

84-8M0111668
Harness provides power and SmartCraft information via a Junction Box connection
Used for VesselView702 and 703 displays, comes in the full kit

8M0110644
Display only with harness, NMEA2000 T and extension, bezels, sun cover,
mounting hardware and gasket.
VV502 display only for use with an exisitng VesselView Link on multi‑display
installations.

2020 Mercury Precision Parts & Accessories Guide 427
