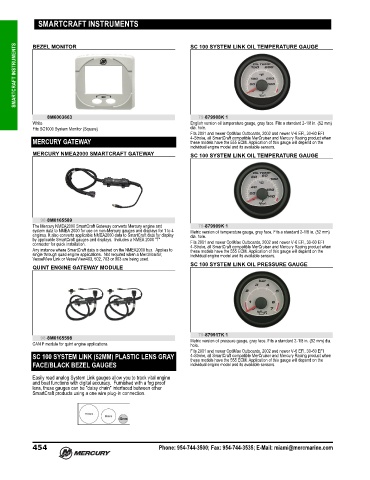

Page 463 - Latin America Accessories Guide (2020) - 8M0163252

SMARTCRAFT INSTRUMENTS SC 100 SYSTEM LINK OIL TEMPERATURE GAUGE

SMARTCRAFT INSTRUMENTS
BEZEL MONITOR

8M6003663 79-879908K 1
White English version oil temperature gauge, gray face. Fits a standard 2‑1/8 in. (52 mm)
Fits SC1000 System Monitor (Square) dia. hole.
Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
MERCURY GATEWAY 4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
these models have the 555 ECM. Application of this gauge will depend on the
individual engine model and its available sensors.
MERCURY NMEA2000 SMARTCRAFT GATEWAY SC 100 SYSTEM LINK OIL TEMPERATURE GAUGE

98-8M0165589
The Mercury NMEA2000 SmartCraft Gateway converts Mercury engine and 79-879909K 1
system data to NMEA 2000 for use on non‑Mercury gauges and displays for 1 to 4 Metric version oil temperature gauge, gray face. Fits a standard 2‑1/8 in. (52 mm)
engines. It also converts applicable NMEA2000 data to SmartCraft data for display dia. hole.
by applicable SmartCraft gauges and displays. Includes a NMEA 2000 "T"
connector for quick installation. Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
Any instance where SmartCraft data is desired on the NMEA2000 bus. Applies to these models have the 555 ECM. Application of this gauge will depend on the
single through quad engine applications. Not required when a MercMonitor, individual engine model and its available sensors.
VesselView Link or VesselView403, 502, 703 or 903 are being used.
SC 100 SYSTEM LINK OIL PRESSURE GAUGE
QUINT ENGINE GATEWAY MODULE

79-879917K 1
98-8M0165598
CAN P module for quint engine applications. Metric version oil pressure gauge, gray face. Fits a standard 2‑1/8 in. (52 mm) dia.
hole.
Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
SC 100 SYSTEM LINK (52MM) PLASTIC LENS GRAY 4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
these models have the 555 ECM. Application of this gauge will depend on the
FACE/BLACK BEZEL GAUGES individual engine model and its available sensors.
Easily read analog System Link gauges allow you to track vital engine
and boat functions with digital accuracy. Furnished with a fog proof
lens, these gauges can be "daisy chain" interfaced between other
SmartCraft products using a one wire plug‑in connection.
