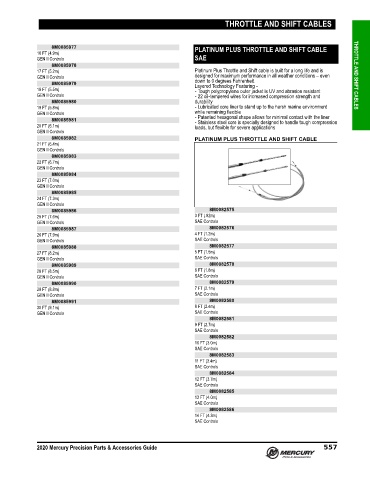

Page 566 - Latin America Accessories Guide (2020) - 8M0163252

THROTTLE AND SHIFT CABLES

8M0085977 PLATINUM PLUS THROTTLE AND SHIFT CABLE
16 FT (4.9m)
GEN II Controls SAE
8M0085978
17 FT (5.2m) Platinum Plus Throttle and Shift cable is built for a long life and is
GEN II Controls designed for maximum performance in all weather conditions – even THROTTLE AND SHIFT CABLES
down to 0 degrees Fahrenheit.
8M0085979 Layered Technology Featuring ‑
18 FT (5.5m) ‑ Tough polypropylene outer jacket is UV and abrasion resistant
GEN II Controls ‑ 22 oil‑tempered wires for increased compression strength and
8M0085980 durability
19 FT (5.8m) ‑ Lubricated core liner to stand up to the harsh marine environment
GEN II Controls while remaining flexible
‑ Patented hexagonal shape allows for minimal contact with the liner
8M0085981 ‑ Stainless steel core is specially designed to handle tough compression
20 FT (6.1m) loads, but flexible for severe applications
GEN II Controls
8M0085982 PLATINUM PLUS THROTTLE AND SHIFT CABLE
21 FT (6.4m)
GEN II Controls
8M0085983
22 FT (6.7m)
GEN II Controls
8M0085984
23 FT (7.0m)
GEN II Controls
8M0085985
24 FT (7.3m)
GEN II Controls
8M0085986 8M0082575
25 FT (7.6m) 3 FT (.92m)
GEN II Controls SAE Controls
8M0085987 8M0082576
26 FT (7.9m) 4 FT (1.2m)
GEN II Controls SAE Controls
8M0085988 8M0082577
27 FT (8.2m) 5 FT (1.5m)
GEN II Controls SAE Controls
8M0085989 8M0082578
28 FT (8.5m) 6 FT (1.8m)
GEN II Controls SAE Controls
8M0085990 8M0082579
29 FT (8.8m) 7 FT (2.1m)
GEN II Controls SAE Controls
8M0085991 8M0082580
30 FT (9.1m) 8 FT (2.4m)
GEN II Controls SAE Controls
8M0082581
9 FT (2.7m)
SAE Controls
8M0082582
10 FT (3.0m)
SAE Controls
8M0082583
11 FT (3.4m)
SAE Controls
8M0082584
12 FT (3.7m)
SAE Controls
8M0082585
13 FT (4.0m)
SAE Controls
8M0082586
14 FT (4.3m)
SAE Controls

2020 Mercury Precision Parts & Accessories Guide 557
