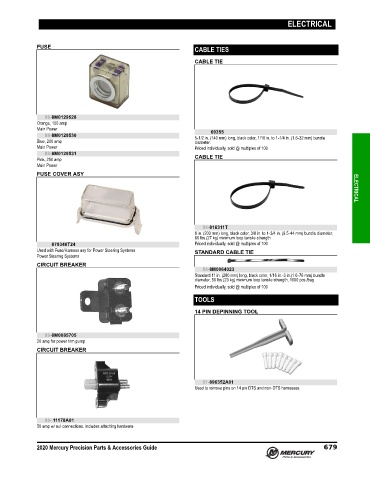

Page 688 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

FUSE
CABLE TIES
CABLE TIE

88-8M0129528
Orange, 150 amp
Main Power 69355
88-8M0129530 5‑1/2 in. (140 mm) long, black color, 1/16 in. to 1‑1/4 in. (1.6‑32 mm) bundle
Blue, 200 amp diameter.
Main Power Priced individually, sold @ multiples of 100
88-8M0129531
Pink, 250 amp CABLE TIE
Main Power
FUSE COVER ASY ELECTRICAL

54-816311T
8 in. (203 mm) long, black color, 3/8 in. to 1‑3/4 in. (9.5‑44 mm) bundle diameter,
60 lbs.(27 kg) minimum loop tensile strength
879346T24 Priced individually, sold @ multiples of 100
Used with Fuse/Harness asy for Power Steering Systems STANDARD CABLE TIE
Power Steering Systems
CIRCUIT BREAKER
54-8M0064023
Standard 11 in. (280 mm) long, black color, 1/16 in.‑3 in.(1.6‑76 mm) bundle
diameter, 50 lbs.(23 kg) minimum loop tensile strength, 1000 pcs./bag
Priced individually, sold @ multiples of 100
TOOLS

14 PIN DEPINNING TOOL

88-8M0085705
20 amp for power trim pump
CIRCUIT BREAKER

91-896352A01
Used to remove pins on 14 pin DTS and non‑DTS harnesses.

88- 11178A01
50 amp w/ nut connections. Includes attaching hardware

2020 Mercury Precision Parts & Accessories Guide 679
