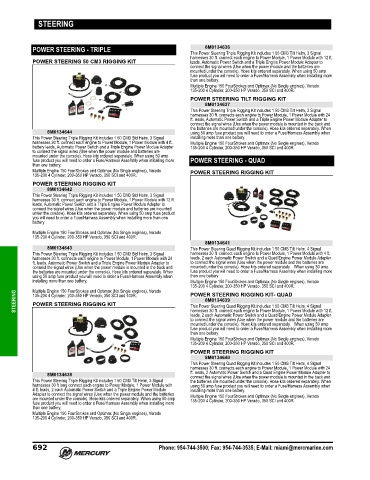

Page 701 - Latin America Accessories Guide (2020) - 8M0163252

STEERING

POWER STEERING - TRIPLE 8M0134636
This Power Steering Triple Rigging Kit includes 1 50 CM3 Tilt Helm, 3 Signal
harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 12 ft.
POWER STEERING 50 CM3 RIGGING KIT leads, Automatic Power Switch and a Triple Engine Power Module Adapter to
connect the signal wires (Use when the power module and the batteries are
mounted under the console). Hose kits ordered separately. When using 50 amp
fuse product you will need to order a Fuse/Harness Assembly when installing more
than one battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
POWER STEERING TILT RIGGING KIT
8M0134637
This Power Steering Triple Rigging Kit includes 1 50 CM3 Tilt Helm, 3 Signal
harnesses 30 ft. connects each engine to Power Module, 1 Power Module with 24
ft. leads, Automatic Power Switch and a Triple Engine Power Module Adapter to
connect the signal wires (Use when the power module is mounted in the back and
the batteries are mounted under the console). Hose kits ordered separately. When
8M0134644 using 50 amp fuse product you will need to order a Fuse/Harness Assembly when
This Power Steering Triple Rigging Kit includes 1 50 CM3 Std Helm, 3 Signal installing more than one battery.
harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 4 ft. Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
battery leads, Automatic Power Switch and a Triple Engine Power Module Adapter 135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
to connect the signal wires (Use when the power module and batteries are
mounted under the console). Hose kits ordered separately. When using 50 amp
fuse product you will need to order a Fuse/Harness Assembly when installing more POWER STEERING - QUAD
than one battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado POWER STEERING RIGGING KIT
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
POWER STEERING RIGGING KIT
8M0134642
This Power Steering Triple Rigging Kit includes 1 50 CM3 Std Helm, 3 Signal
harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 12 ft.
leads, Automatic Power Switch and a Triple Engine Power Module Adapter to
connect the signal wires (Use when the power module and batteries are mounted
under the console). Hose kits ordered separately. When using 50 amp fuse product
you will need to order a Fuse/Harness Assembly when installing more than one
battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
8M0134641
8M0134643 This Power Steering Quad Rigging Kit includes 1 50 CM3 Tilt Helm, 4 Signal
This Power Steering Triple Rigging Kit includes 1 50 CM3 Std Helm, 3 Signal harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 4 ft.
harnesses 30 ft. connects each engine to Power Module, 1 Power Module with 24 leads, 2 each Automatic Power Switch and a Quad Engine Power Module Adapter
ft. leads, Automatic Power Switch and a Triple Engine Power Module Adapter to to connect the signal wires (Use when the power module and the batteries are
connect the signal wires (Use when the power module is mounted in the back and mounted under the console). Hose kits ordered separately. When using 50 amp
the batteries are mounted under the console). Hose kits ordered separately. When fuse product you will need to order a Fuse/Harness Assembly when installing more
using 50 amp fuse product you will need to order a Fuse/Harness Assembly when than one battery.
installing more than one battery. Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
STEERING 135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R. POWER STEERING RIGGING KIT- QUAD
8M0134639
POWER STEERING RIGGING KIT
This Power Steering Quad Rigging Kit includes 1 50 CM3 Tilt Helm, 4 Signal
harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 12 ft.
leads, 2 each Automatic Power Switch and a Quad Engine Power Module Adapter
to connect the signal wires (Use when the power module and the batteries are
mounted under the console). Hose kits ordered separately. When using 50 amp
fuse product you will need to order a Fuse/Harness Assembly when installing more
than one battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
POWER STEERING RIGGING KIT
8M0134640
This Power Steering Quad Rigging Kit includes 1 50 CM3 Tilt Helm, 4 Signal
harnesses 30 ft. connects each engine to Power Module, 1 Power Module with 24
8M0134638 ft. leads, 2 Automatic Power Switch and a Quad Engine Power Module Adapter to
connect the signal wires (Use when the power module is mounted in the back and
This Power Steering Triple Rigging Kit includes 1 50 CM3 Tilt Helm, 3 Signal the batteries are mounted under the console). Hose kits ordered separately. When
harnesses 30 ft long connect each engine to Power Module, 1 Power Module with using 50 amp fuse product you will need to order a Fuse/Harness Assembly when
4 ft. leads, 2 each Automatic Power Switch and a Triple Engine Power Module installing more than one battery.
Adapter to connect the signal wires (Use when the power module and the batteries Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
are mounted under the console). Hose kits ordered separately. When using 50 amp 135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
fuse product you will need to order a Fuse/Harness Assembly when installing more
than one battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
