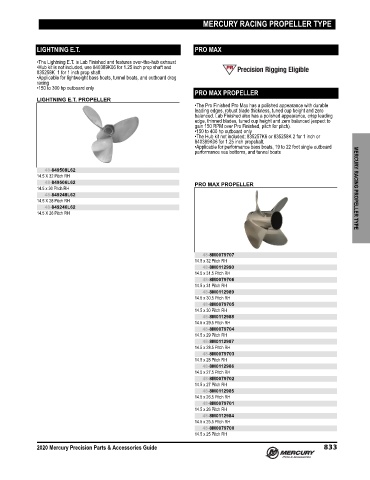

Page 842 - Latin America Accessories Guide (2020) - 8M0163252

MERCURY RACING PROPELLER TYPE

LIGHTNING E.T. PRO MAX

•The Lightning E.T. is Lab Finished and features over‑the‑hub exhaust
•Hub kit is not included, use 840389K06 for 1.25 inch prop shaft and
835258K 1 for 1 inch prop shaft
•Applicable for lightweight bass boats, tunnel boats, and outboard drag
racing
•150 to 300 hp outboard only
PRO MAX PROPELLER
LIGHTNING E.T. PROPELLER
•The Pro Finished Pro Max has a polished appearance with durable
leading edges, robust blade thickness, tuned cup height and zero
balanced. Lab Finished also has a polished appearance, crisp leading
edge, thinned blades, tuned cup height and zero balanced (expect to
gain 150 RPM over Pro Finished, pitch for pitch).
•150 to 400 hp outboard only
•The Hub kit not included; 835257K6 or 835258K 2 for 1 inch or
840389K06 for 1.25 inch propshaft.
•Applicable for performance bass boats, 19 to 22 foot single outboard
performance vee bottoms, and tunnel boats

48-849508L62
14.5 X 32 Pitch RH
48-849506L62 PRO MAX PROPELLER
14.5 x 30 Pitch RH MERCURY RACING PROPELLER TYPE
48-849248L62
14.5 X 28 Pitch RH
48-849246L62
14.5 X 26 Pitch RH

48-8M0079707
14.5 x 32 Pitch RH
48-8M0112990
14.5 x 31.5 Pitch RH
48-8M0079706
14.5 x 31 Pitch RH
48-8M0112989
14.5 x 30.5 Pitch RH
48-8M0079705
14.5 x 30 Pitch RH
48-8M0112988
14.5 x 29.5 Pitch RH
48-8M0079704
14.5 x 29 Pitch RH
48-8M0112987
14.5 x 28.5 Pitch RH
48-8M0079703
14.5 x 28 Pitch RH
48-8M0112986
14.5 x 27.5 Pitch RH
48-8M0079702
14.5 x 27 Pitch RH
48-8M0112985
14.5 x 26.5 Pitch RH
48-8M0079701
14.5 x 26 Pitch RH
48-8M0112984
14.5 x 25.5 Pitch RH
48-8M0079700
14.5 x 25 Pitch RH

2020 Mercury Precision Parts & Accessories Guide 833
