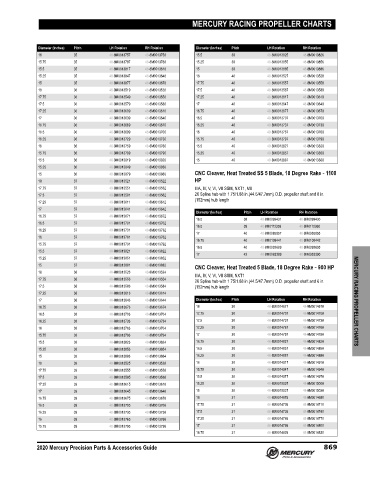

Page 878 - Latin America Accessories Guide (2020) - 8M0163252

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation Diameter (Inches) Pitch LH Rotation RH Rotation
16 35 48-8M0013757 48-8M0013758 15.5 39 48-8M0013825 48-8M0013826
15.75 35 48-8M0013787 48-8M0013788 15.25 39 48-8M0013855 48-8M0013856
15.5 35 48-8M0013817 48-8M0013818 15 39 48-8M0013885 48-8M0013886
15.25 35 48-8M0013847 48-8M0013848 18 40 48-8M0013527 48-8M0013528
15 35 48-8M0013877 48-8M0013878 17.75 40 48-8M0013557 48-8M0013558
18 36 48-8M0013519 48-8M0013520 17.5 40 48-8M0013587 48-8M0013588
17.75 36 48-8M0013549 48-8M0013550 17.25 40 48-8M0013617 48-8M0013618
17.5 36 48-8M0013579 48-8M0013580 17 40 48-8M0013647 48-8M0013648
17.25 36 48-8M0013609 48-8M0013610 16.75 40 48-8M0013677 48-8M0013678
17 36 48-8M0013639 48-8M0013640 16.5 40 48-8M0013707 48-8M0013708
16.75 36 48-8M0013669 48-8M0013670 16.25 40 48-8M0013737 48-8M0013738
16.5 36 48-8M0013699 48-8M0013700 16 40 48-8M0013767 48-8M0013768
16.25 36 48-8M0013729 48-8M0013730 15.75 40 48-8M0013797 48-8M0013798
16 36 48-8M0013759 48-8M0013760 15.5 40 48-8M0013827 48-8M0013828
15.75 36 48-8M0013789 48-8M0013790 15.25 40 48-8M0013857 48-8M0013858
15.5 36 48-8M0013819 48-8M0013820 15 40 48-8M0013887 48-8M0013888
15.25 36 48-8M0013849 48-8M0013850
15 36 48-8M0013879 48-8M0013880 CNC Cleaver, Heat Treated SS 5 Blade, 18 Degree Rake ‑ 1100
18 37 48-8M0013521 48-8M0013522 HP
17.75 37 48-8M0013551 48-8M0013552 IIIA, IV, V, VI, VII SSM, NXT1, M8
17.5 37 48-8M0013581 48-8M0013582 26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in.
(152mm) hub length
17.25 37 48-8M0013611 48-8M0013612
17 37 48-8M0013641 48-8M0013642
Diameter (Inches) Pitch LH Rotation RH Rotation
16.75 37 48-8M0013671 48-8M0013672
16.5 38 48-8M0099431 48-8M0099430
16.5 37 48-8M0013701 48-8M0013702
16.5 39 48-8M0112359 48-8M0112360
16.25 37 48-8M0013731 48-8M0013732
17 40 48-8M0085857 48-8M0085858
16 37 48-8M0013761 48-8M0013762
16.75 40 48-8M0108441 48-8M0108442
15.75 37 48-8M0013791 48-8M0013792
16.5 40 48-8M0092609 48-8M0092608
15.5 37 48-8M0013821 48-8M0013822
17 42 48-8M0083389 48-8M0083390
15.25 37 48-8M0013851 48-8M0013852
15 37 48-8M0013881 48-8M0013882 CNC Cleaver, Heat Treated 5 Blade, 18 Degree Rake ‑ 900 HP
18 38 48-8M0013523 48-8M0013524
IIIA, IV, V, VI, VII SSM, NXT1
17.75 38 48-8M0013553 48-8M0013554
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in.
17.5 38 48-8M0013583 48-8M0013584 (152mm) hub length
17.25 38 48-8M0013613 48-8M0013614
17 38 48-8M0013643 48-8M0013644 Diameter (Inches) Pitch LH Rotation RH Rotation MERCURY RACING PROPELLER CHARTS
16.75 38 48-8M0013673 48-8M0013674 18 30 48-8M0014677 48-8M0014678
16.5 38 48-8M0013703 48-8M0013704 17.75 30 48-8M0014707 48-8M0014708
16.25 38 48-8M0013733 48-8M0013734 17.5 30 48-8M0014737 48-8M0014738
16 38 48-8M0013763 48-8M0013764 17.25 30 48-8M0014767 48-8M0014768
15.75 38 48-8M0013793 48-8M0013794 17 30 48-8M0014797 48-8M0014798
15.5 38 48-8M0013823 48-8M0013824 16.75 30 48-8M0014827 48-8M0014828
15.25 38 48-8M0013853 48-8M0013854 16.5 30 48-8M0014857 48-8M0014858
15 38 48-8M0013883 48-8M0013884 16.25 30 48-8M0014887 48-8M0014888
18 39 48-8M0013525 48-8M0013526 16 30 48-8M0014917 48-8M0014918
17.75 39 48-8M0013555 48-8M0013556 15.75 30 48-8M0014947 48-8M0014948
17.5 39 48-8M0013585 48-8M0013586 15.5 30 48-8M0014977 48-8M0014978
17.25 39 48-8M0013615 48-8M0013616 15.25 30 48-8M0015007 48-8M0015008
17 39 48-8M0013645 48-8M0013646 15 30 48-8M0015037 48-8M0015038
16.75 39 48-8M0013675 48-8M0013676 18 31 48-8M0014679 48-8M0014680
16.5 39 48-8M0013705 48-8M0013706 17.75 31 48-8M0014709 48-8M0014710
16.25 39 48-8M0013735 48-8M0013736 17.5 31 48-8M0014739 48-8M0014740
16 39 48-8M0013765 48-8M0013766 17.25 31 48-8M0014769 48-8M0014770
15.75 39 48-8M0013795 48-8M0013796 17 31 48-8M0014799 48-8M0014800
16.75 31 48-8M0014829 48-8M0014830

2020 Mercury Precision Parts & Accessories Guide 869
