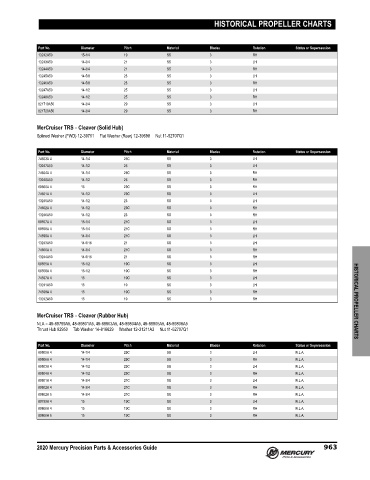

Page 972 - Latin America Accessories Guide (2020) - 8M0163252

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
13242A50 15-1/4 19 SS 3 RH
13243A50 14-3/4 21 SS 3 LH
13244A50 14-3/4 21 SS 3 RH
13245A50 14-5/8 23 SS 3 LH
13246A50 14-5/8 23 SS 3 RH
13247A50 14-1/2 25 SS 3 LH
13248A50 14-1/2 25 SS 3 RH
821719A50 14-3/4 29 SS 3 LH
821720A50 14-3/4 29 SS 3 RH

MerCruiser TRS ‑ Cleaver (Solid Hub)
Splined Washer (FWD) 12‑39701 Flat Washer (Rear) 12‑39698 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
74603A 4 14-1/4 25C SS 3 LH
13247A50 14-1/2 25 SS 3 LH
74604A 4 14-1/4 25C SS 3 RH
13248A50 14-1/2 25 SS 3 RH
68560A 4 15 23C SS 3 RH
74601A 4 14-1/2 23C SS 3 LH
13245A50 14-1/2 23 SS 3 LH
74602A 4 14-1/2 23C SS 3 RH
13246A50 14-1/2 23 SS 3 RH
68557A 4 15-1/4 21C SS 3 LH
68558A 4 15-1/4 21C SS 3 RH
74599A 4 14-3/4 21C SS 3 LH
13243A50 14-5/16 21 SS 3 LH
74600A 4 14-3/4 21C SS 3 RH
13244A50 14-5/16 21 SS 3 RH
68555A 4 15-1/2 19C SS 3 LH
68556A 4 15-1/2 19C SS 3 RH
74597A 4 15 19C SS 3 LH
13241A50 15 19 SS 3 LH
74598A 4 15 19C SS 3 RH
13242A50 15 19 SS 3 RH HISTORICAL PROPELLER CHARTS

MerCruiser TRS ‑ Cleaver (Rubber Hub)
NLA = 48‑89799A5, 48‑89801A5, 48‑89803A5, 48‑89804A5, 48‑89805A5, 48‑89806A5
Thrust Hub 92950 Tab Washer 14‑816629 Washer 12‑31211A2 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
89805A 4 14-1/4 25C SS 3 LH N.L.A.
89806A 4 14-1/4 25C SS 3 RH N.L.A.
89803A 4 14-1/2 23C SS 3 LH N.L.A.
89804A 4 14-1/2 23C SS 3 RH N.L.A.
89801A 4 14-3/4 21C SS 3 LH N.L.A.
89802A 4 14-3/4 21C SS 3 RH N.L.A.
89802A 5 14-3/4 21C SS 3 RH N.L.A.
89799A 4 15 19C SS 3 LH N.L.A.
89800A 4 15 19C SS 3 RH N.L.A.
89800A 5 15 19C SS 3 RH N.L.A.

2020 Mercury Precision Parts & Accessories Guide 963
