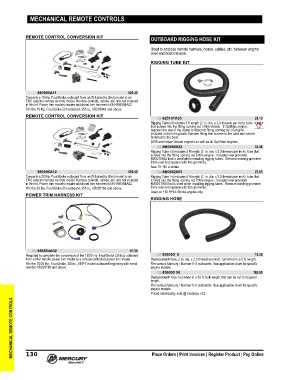

Page 143 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MECHANICAL REMOTE CONTROLS

REMOTE CONTROL CONVERSION KIT
OUTBOARD RIGGING HOSE KIT
Used to enclose remote harness, hoses, cables, etc. between engine
cowl and boat transom.

RIGGING TUBE KIT

880095A11 629.30
Converts a 15 Hp. FourStroke outboard from an EH (electric tiller) model to an
ERC (electric remote control) model. Remote controls, cables, etc. are not included
in this kit. Power trim models require additional trim harness kit 84‑856554A02.
Fits the 15 Hp. FourStroke EH outboard, 351cc., 0R235949 and above.
REMOTE CONTROL CONVERSION KIT
32-825191A03 24.13
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube
that screws into the fitting coming out of the Verado. If OptiMax engine,
requires the use of the clamp to attach to fitting coming out of engine.
Included in the kit is plastic transom fitting that screws to the tube and can be
fastened to the boat.
2005 and newer Verado engines as well as all Opti Max engines
32-8M0088822 33.46
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube that
screws into the fitting coming out of the engine. Includes new grommet
8M0075942 that is used when installing rigging tubes. Remove existing grommet
from cowl and replace with this grommet..
New 75‑115 4 stroke
880095A12 605.45 32-8M0062693 27.05
Converts a 20 Hp. FourStroke outboard from an EH (electric tiller) model to an Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube that
ERC (electric remote control) model. Remote controls, cables, etc. are not included screws into the fitting coming out of the engine. Includes new grommet
in this kit. Power trim models require additional trim harness kit 84‑856554A02. 8M0061160 that is used when installing rigging tubes. Remove existing grommet
Fits the 20 Hp. FourStroke EH outboard, 351cc., 0R235168 and above. from cowl and replace with this grommet..
Used on 150 EFI 4‑Stroke engine only
POWER TRIM HARNESS KIT
RIGGING HOSE

84-856554A02 91.50
Required to complete the conversion of the 15/20 Hp. FourStroke (351cc) outboard 32-859055 5 19.35
from a tiller handle power trim model to a remote controlled power trim model. Replacement Hose, 2 in. dia. x 2.3 threads per inch, furnished in a 5 ft. length.
Fits the 15/20 Hp. FourStroke, 351cc., EHPT model outboard beginning with serial Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
number 0R235168 and above. engine models.
32-859055 50 182.99
Replacement Hose, furnished in a 50 ft. bulk length that can be cut to required
length.
Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
engine models.
Priced individually, sold @ multiples of 2
