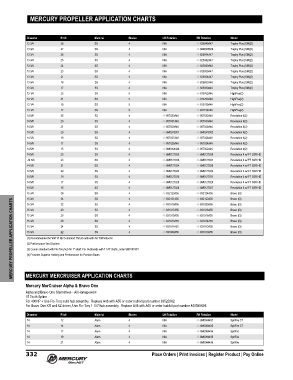

Page 345 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER APPLICATION CHARTS

Diameter Pitch Material Blades LH Rotation RH Rotation Model
13 3/4 28 SS 4 N/A 48-825948A47 Trophy Plus (SM)(2)
13 3/4 27 SS 4 N/A 48-8M8026830 Trophy Plus (SM)(2)
13 3/4 26 SS 4 N/A 48-825944A47 Trophy Plus (SM)(2)
13 3/4 25 SS 4 N/A 48-825942A47 Trophy Plus (SM)(2)
13 3/4 24 SS 4 N/A 48-825940A48 Trophy Plus (SM)(2)
13 3/4 23 SS 4 N/A 48-825938A47 Trophy Plus (SM)(2)
13 3/4 21 SS 4 N/A 48-825934A47 Trophy Plus (SM)(2)
13 3/4 19 SS 4 N/A 48-825932A46 Trophy Plus (SM)(2)
13 3/4 17 SS 4 N/A 48-825930A46 Trophy Plus (SM)(2)
13 1/4 23 SS 5 N/A 48-815762A46 HighFive(2)
13 1/4 21 SS 5 N/A 48-815760A46 HighFive(2)
13 1/4 19 SS 5 N/A 48-815758A46 HighFive(2)
13 1/2 17 SS 5 N/A 48-821154A46 HighFive(2)
14 5/8 25 SS 4 48-857033A46 48-857032A46 Revolution 4(2)
14 5/8 23 SS 4 48-857031A46 48-857030A46 Revolution 4(2)
14 5/8 21 SS 4 48-857029A46 48-857028A46 Revolution 4(2)
14 5/8 20 SS 4 48-8M0070051 48-8M0070052 Revolution 4(2)
14 5/8 19 SS 4 48-857027A46 48-857026A46 Revolution 4(2)
14 5/8 17 SS 4 48-857025A46 48-857024A46 Revolution 4(2)
14 5/8 15 SS 4 48-8M0064449 48-857022A46 Revolution 4(2)
14 5/8 25 SS 4 48-8M0127038 48-8M0127039 Revolution 4 w/ FT SSR HD
-14 5/8 23 SS 4 48-8M0127036 48-8M0127037 Revolution 4 w/ FT SSR HD
14 5/8 21 SS 4 48-8M0127034 48-8M0127035 Revolution 4 w/ FT SSR HD
14 5/8 20 SS 4 48-8M0127032 48-8M0127033 Revolution 4 w/ FT SSR HD
14 5/8 19 SS 4 48-8M0127030 48-8M0127031 Revolution 4 w/ FT SSR HD
14 5/8 17 SS 4 48-8M0127028 48-8M0127029 Revolution 4 w/ FT SSR HD
14 5/8 15 SS 4 48-8M0127026 48-8M0127027 Revolution 4 w/ FT SSR HD
15 3/4 36 SS 4 4 4 4 4 48-832123A55 48-832124A55 Bravo I(3)
15 3/4
SS
48-832122A55
34
Bravo I(3)
48-832121A55
MERCURY PROPELLER APPLICATION CHARTS 15 3/4 26 SS 4 4 4 48-831913A55 48-831914A55 Bravo I(3)
32
SS
48-831920A55
48-831919A55
Bravo I(3)
15 3/4
48-831917A55
SS
30
Bravo I(3)
48-831918A55
15 3/4
28
SS
15 3/4
Bravo I(3)
48-831916A55
48-831915A55
48-831912A55
SS
Bravo I(3)
48-831911A55
15 3/4
24
48-831909A55
15 3/4
Bravo I(3)
48-831910A55
SS
22
(1) Recommended for 90/115 Hp Command Thrust outboards for Tri/Pontoons
(2) Performance Vent System
(3) Comes standard with Flo-Torq hub for 1" shaft. For Outboards with 1 1/4" shafts, order 8M0101601
(4) Provides Superior Holding and Performance for Pontoon Boats.
MERCURY MERCRUISER APPLICATION CHARTS
Mercury MerCruiser Alpha & Bravo One
Alpha and Bravo One Sterndrives ‑ All Horsepowers
15 Tooth Spline
For 400HP + Use Flo‑Torq solid hub assembly. Replace A46 with A55 or order hub kit part number 835258K2
For Bravo One XR and XZ drives, Use Flo‑Torq 1 1/4" hub assembly. Replace A46 with A65 or order hub kit part number 840389K06.
Diameter Pitch Material Blades LH Rotation RH Rotation Model
14 12 Alum 4 N/A 48-8M0084491 SpitFire CT
14 14 Alum 4 N/A 48-8M0084493 SpitFire CT
14 17 Alum 4 N/A 48-8M0084494 SpitFire
14 19 Alum 4 N/A 48-8M0084495 SpitFire
14 21 Alum 4 N/A 48-8M0084496 SpitFire
