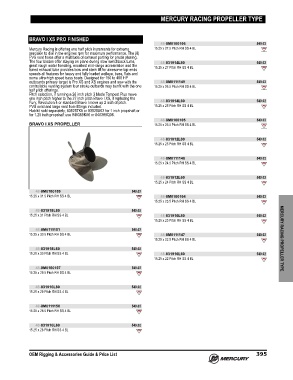

Page 408 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY RACING PROPELLER TYPE

BRAVO I XS PRO FINISHED
48-8M0100106 549.02
Mercury Racing is offering one half pitch increments for extreme 15.25 x 27.5 Pitch RH SS 4 BL
precision to dial in the engines rpm for maximum performance. The (8)
PVS vent holes offer a multitude of exhaust porting for precis planing.
The four blades offer staying on plane during slow switchback turns, 48-831914L80 549.02
great rough water handling, excellent mid‑range acceleration and the
tuned exhaust tube provides bow and stern lift for awesome top ends 15.25 x 27 Pitch RH SS 4 BL
speeds all features for heavy and fully loaded walleye, bass, flats and
some ultra‑high speed bass boats. Designed for 150 to 400 HP
outboards primary target is Pro XS and XS engines and now with the 48-8M0111149 549.02
controllable venting system four stroke outbards may benfit with the one 15.25 x 26.5 Pitch RH SS 4 BL
half pitch offerings.
Pitch selection, if running a 26 inch pitch 3 blade Tempest Plus move
one inch pitch higher to the 27 inch pitch Bravo I XS, if replacing the
Fury, Revolution 4 or standard Bravo I move up 2 inch of pitch. 48-831914L60 549.02
PVS solid and large vent hole fittings included. 15.25 x 26 Pitch RH SS 4 BL
Hub kit sold separately; 835257K6 or 835258K2 for 1 inch propshaft or
for 1.25 inch propshaft use 840389K06 or 840389Q06.
48-8M0100105 549.02
BRAVO I XS PROPELLER 15.25 x 25.5 Pitch RH SS 4 BL

48-831912L80 549.02
15.25 x 25 Pitch RH SS 4 BL

48-8M0111148 549.02
15.25 x 24.5 Pitch RH SS 4 BL

48-831912L60 549.02
15.25 x 24 Pitch RH SS 4 BL
48-8M0100109 549.02
15.25 x 31.5 Pitch RH SS 4 BL 48-8M0100104 549.02
15.25 x 23.5 Pitch RH SS 4 BL
48-831918L80 549.02
15.25 x 31 Pitch RH SS 4 BL 48-831910L80 549.02
15.25 x 23 Pitch RH SS 4 BL
48-8M0111151 549.02
15.25 x 30.5 Pitch RH SS 4 BL 48-8M0111147 549.02
15.25 x 22.5 Pitch RH SS 4 BL MERCURY RACING PROPELLER TYPE
48-831918L60 549.02
15.25 x 30 Pitch RH SS 4 BL 48-831910L60 549.02
15.25 x 22 Pitch RH SS 4 BL
48-8M0100107 549.02
15.25 x 29.5 Pitch RH SS 4 BL

48-831916L80 549.02
15.25 x 29 Pitch RH SS 4 BL

48-8M0111150 549.02
15.25 x 28.5 Pitch RH SS 4 BL

48-831916L60 549.02
15.25 x 28 Pitch RH SS 4 BL

OEM Rigging & Accessories Guide & Price List 395
