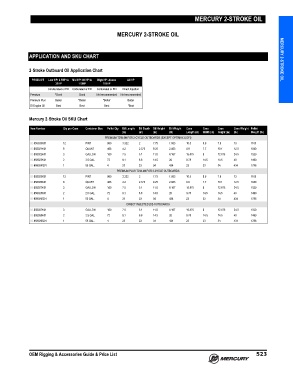

Page 536 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY 2-STROKE OIL

MERCURY 2-STROKE OIL

APPLICATION AND SKU CHART MERCURY 2-STROKE OIL

2‑Stroke Outboard Oil Application Chart
PRODUCT Low HP: 2.5HP to Mid HP: 40 HP to High HP: Above All HP
30HP 115HP 115HP
Carubureted or EFI Carbureted or EFI Carbureted or EFI Direct Injection
Premium *Good Good Not recommended Not recommended
Premium Plus Better *Better *Better Better
DI Engine Oil Best Best Best *Best

Mercury 2‑Stroke Oil SKU Chart

Item Number Qty per Case Container Size Pallet Qty Btl Length Btl Depth Btl Height Btl Weight Case Case Case Case Weight Pallet
(in) (in) (in) (lb) Length (in) Width (in) Height (in) (lb) Weight (lb)
PREMIUM TCW-3® FOR 2-CYCLE OUTBOARDS (EXCEPT OPTIMAX & DFI)
92-858020K01 12 PINT 960 3.322 2 7.75 1.083 10.5 8.6 7.9 13 1105
92-858021K01 6 QUART 468 4.2 2.375 9.25 2.083 8.9 7.7 10.1 12.5 1040
92-858022K01 3 GALLON 180 7.5 5.1 11.8 8.167 15.875 8 12.875 24.5 1520
92-858023K01 2 2.5 GAL. 72 9.1 6.8 14.5 20 9.78 14.5 14.5 40 1490
92-858024Q01 1 55 GAL. 4 23 23 34 434 23 23 34 434 1786
PREMIUM PLUS TCW-3® FOR 2-CYCLE OUTBOARDS
92-858025K01 12 PINT 960 3.322 2 7.75 1.083 10.5 8.6 7.9 13 1105
92-858026K01 6 QUART 468 4.2 2.375 9.25 2.083 8.9 7.7 10.1 12.5 1040
92-858027K01 3 GALLON 180 7.5 5.1 11.8 8.167 15.875 8 12.875 24.5 1520
92-858028K01 2 2.5 GAL. 72 9.1 6.8 14.5 20 9.78 14.5 14.5 40 1490
92-858029Q01 1 55 GAL. 4 23 23 34 434 23 23 34 434 1786
DIRECT INJECTED (DI) OUTBOARDS
92-858037K01 3 GALLON 180 7.5 5.1 11.8 8.167 15.875 8 12.875 24.5 1520
92-858038K01 2 2.5 GAL. 72 9.1 6.8 14.5 20 9.78 14.5 14.5 40 1490
92-858039Q01 1 55 GAL. 4 23 23 34 434 23 23 34 434 1786

OEM Rigging & Accessories Guide & Price List 523
