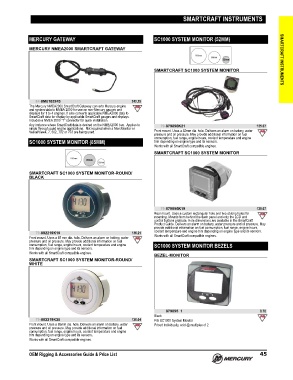

Page 58 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

SMARTCRAFT INSTRUMENTS

MERCURY GATEWAY SC1000 SYSTEM MONITOR (52MM)

MERCURY NMEA2000 SMARTCRAFT GATEWAY

SMARTCRAFT SC1000 SYSTEM MONITOR SMARTCRAFT INSTRUMENTS

84-8M0105243 242.25
The Mercury NMEA2000 SmartCraft Gateway converts Mercury engine
and system data to NMEA 2000 for use on non‑Mercury gauges and
displays for 1 to 4 engines. It also converts applicable NMEA2000 data to
SmartCraft data for display by applicable SmartCraft gauges and displays.
Includes a NMEA 2000 "T" connector for quick installation.
Any instance where SmartCraft data is desired on the NMEA2000 bus. Applies to 79-879896K21 135.07
single through quad engine applications. Not required when a MercMonitor or
VesselView4, 7, 502, 702 or 703 are being used. Front mount. Uses a 52mm dia. hole. Delivers an alarm on battery, water
pressure and oil pressure. May provide additional information on fuel
consumption, fuel range, engine hours, coolant temperature and engine
SC1000 SYSTEM MONITOR (85MM) trim depending on engine type and its sensors.
Works with all SmartCraft compatible engines.
SMARTCRAFT SC1000 SYSTEM MONITOR

SMARTCRAFT SC1000 SYSTEM MONITOR-ROUND/
BLACK

79-879896K19 135.07
Rear mount. Uses a custom rectangular hole and two oblong holes for
mounting. Mounts from behind the dash panel and only the LCD and
control buttons protrude. Hole dimensions are available in the SmartCraft
Product Guide. Delivers an alarm on battery, water pressure and oil pressure. May
provide additional information on fuel consumption, fuel range, engine hours,
79-892219K19 136.21 coolant temperature and engine trim depending on engine type and its sensors.
Front mount. Uses a 85 mm dia. hole. Delivers an alarm on battery, water Works with all SmartCraft compatible engines.
pressure and oil pressure. May provide additional information on fuel
consumption, fuel range, engine hours, coolant temperature and engine SC1000 SYSTEM MONITOR BEZELS
trim depending on engine type and its sensors.
Works with all SmartCraft compatible engines.
BEZEL-MONITOR
SMARTCRAFT SC1000 SYSTEM MONITOR-ROUND/
WHITE

879895 1 8.78
Black
79-892219K20 130.04 Fits SC1000 System Monitor
Front mount. Uses a 85mm dia. hole. Delivers an alarm on battery, water Priced individually, sold @ multiples of 2
pressure and oil pressure. May provide additional information on fuel
consumption, fuel range, engine hours, coolant temperature and engine
trim depending on engine type and its sensors.
Works with all SmartCraft compatible engines.

OEM Rigging & Accessories Guide & Price List 45
