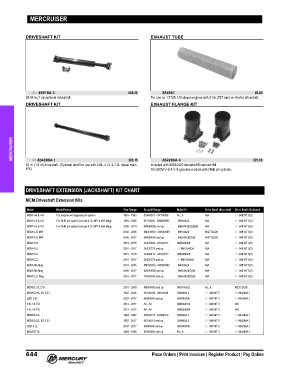

Page 657 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCRUISER

DRIVESHAFT KIT EXHAUST TUBE

45- 86978A 3 556.06 864957 49.80
39.64 in.(1 m) optional driveshaft. For use on 1.7 MS 120 diesel engines with 31 in.(787 mm) or shorter driveshaft.
DRIVESHAFT KIT EXHAUST FLANGE KIT

MERCRUISER

862268A 4
45-864286A 1
326.15
63 in. (1.6 m) driveshaft. (Optional shaft for use with 2.8L, 4.2L & 7.3L diesel main Included with 98634A20 driveshaft Extension Kit 221.60
kits.) Fits MCM V‑6 & V‑8 gasoline models with DHB p/s cylinder.

DRIVESHAFT EXTENSION (JACKSHAFT) KIT CHART
MCM Driveshaft Extension Kits

Model Model Notes Year Range Serial # Range Main Kit Drive Shaft (Standard) Drive Shaft (Optional)
MCM V-6 & V-8 For engines w/ Saginaw p/s system 1991 - 1993 0D445877 - 0F114599 N.L.A. N/A 45- 94819T 5(2)
MCM V-6 & V-8 For DHB p/s system (except 4.3L MPI & 496 Mag) 1994 - 2006 0F114600 - 0W649999 98634A20 N/A 45- 94819T 5(2)
MCM V-6 & V-8 For DHB p/s system (except 4.3L MPI & 496 Mag) 2006 - 2014 0W650000 and up 98634A20(7)(8)(9) N/A 45- 94819T 5(2)
MCM 4.3L MPI 2002 - 2006 0M300000 - 0W649999 98634A20 862772A28 45- 94819T 5(2)
MCM 4.3L MPI 2006 - 2017 0W650000 and up 98634A20(7)(8) 862772A28 45- 94819T 5(2)
MCM 4.5L 2014 - 2016 2A441953 - 2A530777 8M0089506 N/A 45- 94819T 5(2)
MCM 4.5L 2016 - 2017 2A530778 and up 98-8M0124634 N/A 45- 94819T 5(2)
MCM 6.2L 2015 - 2016 2A456613 - 2A530777 8M0089506 N/A 45- 94819T 5(2)
MCM 6.2L 2016 - 2017 2A530778 and up 98-8M0124634 N/A 45- 94819T 5(2)
MCM 496 Mag 2001 - 2005 0M025000 - 0W309999 98634A20 N/A 45- 94819T 5(2)
MCM 496 Mag 2005 - 2017 0W310000 and up 98634A20(7)(8) N/A 45- 94819T 5(2)
MCM 8.2L Mag 2010 - 2017 1A350340 and up 98634A20(7)(8) N/A 45- 94819T 5(2)

MCM D1.7L DTI 2001 - 2009 0M055000 and up 863914A02 N.L.A. 862772A28
MCM D2.8L ES & EI 1997 - 2005 0K144109 - 88010499 806843A 2 45- 94819T 5 45-864286A 1
QSD 2.8L 2007 - 2017 88300000 and up 806843A06 45- 94819T 5 45-864286A 1
3.0L V6 TDI 2013 - 2017 All - All 8M0088724 45- 94819T 5 N/A
4.2L V8 TDI 2013 - 2017 All - All 8M0085664 45- 94819T 5 N/A
MCM D4.2L 1994 - 1997 0D554732 - 0L668673 806843A 2 45- 94819T 5 45-864286A 1
MCM D4.2L ES & EI 1997 - 2017 0K144114 and up 806843A 2 45- 94819T 5 45-864286A 1
QSD 4.2L 2007 - 2017 88400000 and up 806843A06 45- 94819T 5 45-864286A 1
MCM D7.3L 1994 - 1996 0F060000 and up N.L.A. 45- 94819T 5 45-864286A 1
