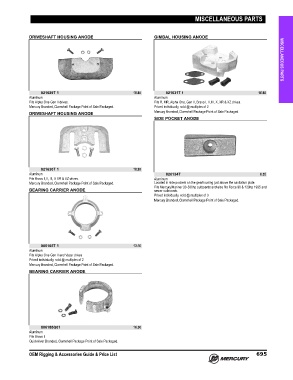

Page 708 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MISCELLANEOUS PARTS

DRIVESHAFT HOUSING ANODE GIMBAL HOUSING ANODE MISCELLANEOUS PARTS

821629T 1 18.85 821631T 1 16.80
Aluminum Aluminum
Fits Alpha One Gen II drives. Fits R, MR, Alpha One, Gen II, Bravo I, II, III, X, XR & XZ drives.
Mercury Branded, Clamshell Package Point of Sale Packaged. Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.
DRIVESHAFT HOUSING ANODE
SIDE POCKET ANODE

821630T 1 18.95
Aluminum 826134T 6.35
Fits Bravo I, II, III, X XR & XZ drives. Aluminum
Mercury Branded, Clamshell Package Point of Sale Packaged. Located in side pockets on the gearhousing just above the cavitation plate.
Fits Mercury/Mariner 30‑300hp outboards and also fits Force 90 & 120hp 1995 and
BEARING CARRIER ANODE newer outboards.
Priced individually, sold @ multiples of 3
Mercury Branded, Clamshell Package Point of Sale Packaged.

806105T 1 13.10
Aluminum
Fits Alpha One Gen II and Vazer drives
Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.
BEARING CARRIER ANODE

806188Q01 16.30
Aluminum
Fits Bravo I
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

OEM Rigging & Accessories Guide & Price List 695
