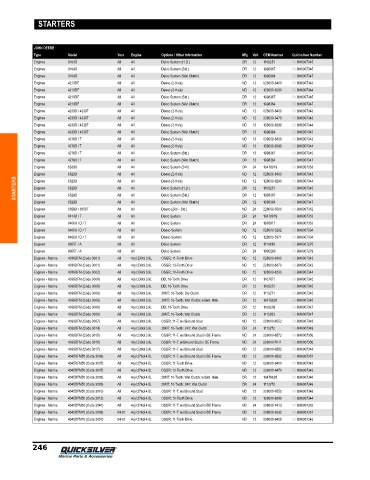

Page 251 - Quicksilver Marine Parts Guide (2020) - 8M0163275

STARTERS

JOHN DEERE
Type Model Year Engine Options / Other Information Mfg Volt OEM Number Quicksilver Number
Engines 3164D All All Delco System (H.D.) DR 12 1109251 50-8M6007345
Engines 3164D All All Delco System (Std.) DR 12 1998367 50-8M6007345
Engines 3164D All All Delco System (Wet Clutch) DR 12 1998364 50-8M6007347
Engines 4219DF All All Denso (2-Hole) ND 12 028000-8400 50-8M6007343
Engines 4219DF All All Denso (3-Hole) ND 12 128000-8290 50-8M6007344
Engines 4219DF All All Delco System (Std.) DR 12 1998367 50-8M6007345
Engines 4219DF All All Delco System (Wet Clutch) DR 12 1998364 50-8M6007347
Engines 4239D / 4239T All All Denso (2-Hole) ND 12 028000-8400 50-8M6007343
Engines 4239D / 4239T All All Denso (2-Hole) ND 12 228000-6470 50-8M6007343
Engines 4239D / 4239T All All Denso (3-Hole) ND 12 128000-8290 50-8M6007344
Engines 4239D / 4239T All All Delco System (Wet Clutch) DR 12 1998364 50-8M6007347
Engines 4276D / T All All Denso (2-Hole) ND 12 028000-8400 50-8M6007343
Engines 4276D / T All All Denso (3-Hole) ND 12 128000-8290 50-8M6007344
Engines 4276D / T All All Delco System (Std.) DR 12 1998367 50-8M6007345
Engines 4276D / T All All Delco System (Wet Clutch) DR 12 1998364 50-8M6007347
Engines 6329D All All Delco System (24V) DR 24 10478819 50-8M6007353
Engines 6329D All All Denso (2-Hole) ND 12 028000-8400 50-8M6007343
STARTERS Engines 6329D All All Delco System (H.D.) DR 12 1109251 50-8M6007345
Denso (3-Hole)
All
All
128000-8290
12
ND
50-8M6007344
6329D
Engines
Engines
50-8M6007345
12
1998367
All
6329D
All
Delco System (Std.)
DR
Engines 6329D All All Delco System (Wet Clutch) DR 12 1998364 50-8M6007347
Engines 6359D / 6359T All All Denso (24V - Std.) ND 24 228000-6560 50-8M6007352
Engines 6414D / T All All Delco System DR 24 10478819 50-8M6007353
Engines 6466A / D / T All All Delco System DR 24 1993917 50-8M6007353
Engines 6466A / D / T All All Denso System ND 12 028000-3292 50-8M6007334
Engines 6466A / D / T All All Denso System ND 12 128000-5971 50-8M6007334
Engines 8955T / A All All Delco System DR 12 1114819 50-8M6007275
Engines 8955T / A All All Delco System DR 24 1990269 50-8M6007279
Engines - Marine 4039DFM (Code 3001) All 4cyl 239ci 3.9L OSGR; 11-Tooth Drive ND 12 028000-8400 50-8M6007343
Engines - Marine 4039DFM (Code 3001) All 4cyl 239ci 3.9L OSGR; 13-Tooth Drive ND 12 228000-6470 50-8M6007343
Engines - Marine 4039DFM (Code 3002) All 4cyl 239ci 3.9L OSGR; 10-Tooth Drive ND 12 128000-8290 50-8M6007344
Engines - Marine 4039DFM (Code 3006) All 4cyl 239ci 3.9L DD; 10-Tooth Drive DR 12 1107871 50-8M6007345
Engines - Marine 4039DFM (Code 3006) All 4cyl 239ci 3.9L DD; 10-Tooth Drive DR 12 1109251 50-8M6007345
Engines - Marine 4039DFM (Code 3006) All 4cyl 239ci 3.9L 28MT; 10-Tooth; Dry Clutch DR 12 1113271 50-8M6007345
Engines - Marine 4039DFM (Code 3006) All 4cyl 239ci 3.9L 28MT; 10-Tooth; Wet Clutch; w/Grd. Hole DR 12 10479628 50-8M6007346
Engines - Marine 4039DFM (Code 3006) All 4cyl 239ci 3.9L DD; 10-Tooth Drive DR 12 1109208 50-8M6007347
Engines - Marine 4039DFM (Code 3006) All 4cyl 239ci 3.9L 28MT; 10-Tooth; Wet Clutch DR 12 1113283 50-8M6007347
Engines - Marine 4039DFM (Code 3007) All 4cyl 239ci 3.9L OSGR: 11-T; wo/Ground Stud ND 12 228000-6552 50-8M6007348
Engines - Marine 4039DFM (Code 3014) All 4cyl 239ci 3.9L 28MT; 10-Tooth; 24V; Wet Clutch DR 24 1113272 50-8M6007349
Engines - Marine 4039DFM (Code 3015) All 4cyl 239ci 3.9L OSGR: 11-T; wo/Ground Stud in DE Frame ND 24 228000-6572 50-8M6007350
Engines - Marine 4039DFM (Code 3015) All 4cyl 239ci 3.9L OSGR: 11-T; w/Ground Stud in DE Frame ND 24 228000-7011 50-8M6007350
Engines - Marine 4039DFM (Code 3017) All 4cyl 239ci 3.9L OSGR: 11-T; wo/Ground Stud ND 12 228000-6552 50-8M6007348
Engines - Marine 4045DFM50 (Code 3006) All 4cyl 276ci 4.5L OSGR; 11-T; wo/Ground Stud in DE Frame ND 12 228000-6532 50-8M6007351
Engines - Marine 4045DFM50 (Code 3007) All 4cyl 276ci 4.5L OSGR; 11-Tooth Drive ND 12 028000-8400 50-8M6007343
Engines - Marine 4045DFM50 (Code 3007) All 4cyl 276ci 4.5L OSGR; 13-Tooth Drive ND 12 228000-6470 50-8M6007343
Engines - Marine 4045DFM50 (Code 3008) All 4cyl 276ci 4.5L 28MT; 10-Tooth; Wet Clutch; w/Grd. Hole DR 12 10479628 50-8M6007346
Engines - Marine 4045DFM50 (Code 3009) All 4cyl 276ci 4.5L 28MT; 10-Tooth; 24V; Wet Clutch DR 24 1113272 50-8M6007349
Engines - Marine 4045DFM50 (Code 3010) All 4cyl 276ci 4.5L OSGR: 11-T; wo/Ground Stud ND 12 228000-6552 50-8M6007348
Engines - Marine 4045DFM50 (Code 3012) All 4cyl 276ci 4.5L OSGR; 10-Tooth Drive ND 12 128000-8290 50-8M6007344
Engines - Marine 4045DFM50 (Code 3041) All 4cyl 276ci 4.5L OSGR; 11-T; wo/Ground Stud in DE Frame ND 24 228000-7413 50-8M6007352
Engines - Marine 4045DFM70 (Code 3006) 04-07 4cyl 276ci 4.5L OSGR; 11-T; wo/Ground Stud in DE Frame ND 12 228000-6532 50-8M6007351
Engines - Marine 4045DFM70 (Code 3007) 04-07 4cyl 276ci 4.5L OSGR; 11-Tooth Drive ND 12 028000-8400 50-8M6007343

246
