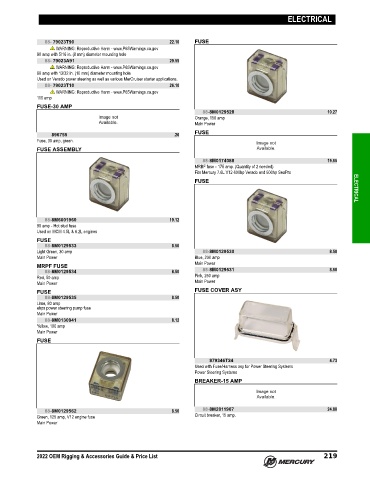

Page 232 - Rigging and Accessories Guide (2022) - 8M0187689
P. 232
ELECTRICAL
88- 79023T90 22.10 FUSE
WARNING: Reproductive Harm - www.P65Warnings.ca.gov
90 amp with 5/16 in. (8 mm) diameter mounting hole
88- 79023A91 29.55
WARNING: Reproductive Harm - www.P65Warnings.ca.gov
90 amp with 13/32 in. (10 mm) diameter mounting hole
Used on Verado power steering as well as various MerCruiser starter applications.
88- 79023T10 26.10
WARNING: Reproductive Harm - www.P65Warnings.ca.gov
110 amp
FUSE-30 AMP
88-8M0129528 10.27
Orange, 150 amp
Main Power
FUSE
896755 .26
Fuse, 30 amp, green.
FUSE ASSEMBLY
88-8M0174088 19.55
MRBF fuse ‑ 175 amp. (Quantity of 2 needed)
Fits Mercury 7.6L V12 600hp Verado and 500hp SeaPro
FUSE ELECTRICAL
88-8M6001960 19.12
90 amp ‑ Hot stud fuse
Used on MCM 4.5L & 6.2L engines
FUSE
88-8M0129533 8.50
Light Green, 30 amp 88-8M0129530 8.50
Main Power Blue, 200 amp
Main Power
MRPF FUSE
88-8M0129534 8.50 88-8M0129531 8.50
Red, 50 amp Pink, 250 amp
Main Power Main Power
FUSE FUSE COVER ASY
88-8M0129535 8.50
Lime, 80 amp
ehps power steering pump fuse
Main Power
88-8M0130941 8.12
Yellow, 100 amp
Main Power
FUSE
879346T24 4.73
Used with Fuse/Harness asy for Power Steering Systems
Power Steering Systems
BREAKER-15 AMP
88-8M0129562 8.50 88-8M2011907 24.80
Green, 125 amp, V12 engine fuse Circuit breaker, 15 amp.
Main Power
2022 OEM Rigging & Accessories Guide & Price List 219
