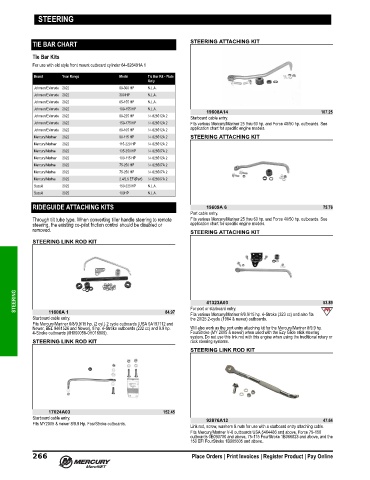

Page 279 - Rigging and Accessories Guide (2022) - 8M0187689

STEERING

TIE BAR CHART STEERING ATTACHING KIT

Tie Bar Kits
For use with old style front mount outboard cylinder 64‑826491A 1
Brand Year Range Model Tie Bar Kit - Plate
Only
Johnson/Evinrude 2022 90-300 HP N.L.A.
Johnson/Evinrude 2022 300 HP N.L.A.
Johnson/Evinrude 2022 65-155 HP N.L.A.
Johnson/Evinrude 2022 100-155 HP N.L.A.
19608A14 107.25
Johnson/Evinrude 2022 90-225 HP 64-826512A 2
Starboard cable entry.
Johnson/Evinrude 2022 150-175 HP 64-826512A 2 Fits various Mercury/Mariner 25 thru 60 hp. and Force 40/50 hp. outboards. See
Johnson/Evinrude 2022 80-105 HP 64-826512A 2 application chart for specific engine models.
Mercury/Mariner 2022 90-115 HP 64-826512A 2 STEERING ATTACHING KIT
Mercury/Mariner 2022 115-220 HP 64-826512A 2
Mercury/Marine 2022 135-250 HP 64-826507A 2
Mercury/Mariner 2022 100-115 HP 64-826512A 2
Mercury/Marine 2022 75-250 HP 64-826507A 2
Mercury/Marine 2022 75-250 HP 64-826507A 2
Mercury/Marine 2022 2.4/2,5 EFI(Perf) 64-826507A 2
Suzuki 2022 150-225 HP N.L.A.
Suzuki 2022 100HP N.L.A.

RIDEGUIDE ATTACHING KITS 19609A 6 75.76
Port cable entry.
Through tilt tube type. When converting tiller handle steering to remote Fits various Mercury/Mariner 25 thru 60 hp. and Force 40/50 hp. outboards. See
steering, the existing co‑pilot friction control should be disabled or application chart for specific engine models.
removed. STEERING ATTACHING KIT
STEERING LINK ROD KIT

STEERING For port or starboard entry. 53.89
41323A03
11606A 1
Starboard cable entry. 84.97 Fits various Mercury/Mariner 8/9.9/15 hp. 4‑Stroke (323 cc) and also fits
the 20/25 2‑cycle (1984 & newer) outboards.
Fits Mercury/Mariner 6/8/9.9/15 hp. (2 cyl.) 2 cycle outboards (USA 0A197112 and
Newer, BEL 9461526 and Newer), 8 hp. 4‑Stroke outboards (232 cc) and 9.9 hp. Will also work as the port entry attaching kit for the Mercury/Mariner 8/9.9 hp.
4‑Stroke outboards (0H000058‑0H016909). FourStroke (MY 2005 & newer) when used with the Ezy Glide stick steering
system. Do not use this link rod with this engine when using the traditional rotary or
STEERING LINK ROD KIT rack steering systems.
STEERING LINK ROD KIT

17024A03 152.45
Starboard cable entry. 92876A12 47.64
Fits MY2005 & newer 8/9.9 Hp. FourStroke outboards.
Link rod, screw, washers & nuts for use with a starboard entry attaching cable.
Fits Mercury/Mariner V‑6 outboards USA 5464486 and above, Force 75‑150
outboards 0E093700 and above, 75‑115 FourStroke 1B366823 and above, and the
150 EFI FourStroke 1B905505 and above..
