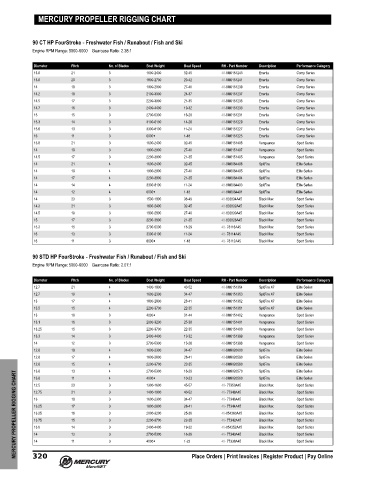

MERCURY PROPELLER RIGGING CHART

90 CT HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.8 21 3 1600-2400 32-45 48-8M0151243 Enertia Comp Series
13.8 20 3 1800-2700 29-42 48-8M0151241 Enertia Comp Series
14 19 3 1900-2900 27-40 48-8M0151239 Enertia Comp Series
14.2 18 3 2100-3300 24-37 48-8M0151237 Enertia Comp Series
14.5 17 3 2200-3900 21-35 48-8M0151235 Enertia Comp Series
14.7 16 3 2400-4400 19-32 48-8M0151233 Enertia Comp Series
15 15 3 2700-5300 16-29 48-8M0151231 Enertia Comp Series
15.3 14 3 3100-6100 14-26 48-8M0151229 Enertia Comp Series
15.6 13 3 3300-8100 11-24 48-8M0151227 Enertia Comp Series
16 11 3 6000+ 1-18 48-8M0151225 Enertia Comp Series
13.8 21 3 1600-2400 32-45 48-8M0151408 Vengeance Sport Series
14 19 3 1900-2900 27-40 48-8M0151407 Vengeance Sport Series
14.5 17 3 2200-3900 21-35 48-8M0151405 Vengeance Sport Series
14 21 4 1600-2400 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 1900-2900 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2200-3900 21-35 48-8M0084494 SpitFire Elite Series
14 14 4 3300-8100 11-24 48-8M0084493 SpitFire Elite Series
14 12 4 6000+ 1-18 48-8M0084491 SpitFire Elite Series
14 23 3 1500-1900 38-49 48-832834A45 Black Max Sport Series
14.3 21 3 1600-2400 32-45 48-832832A45 Black Max Sport Series
14.5 19 3 1900-2900 27-40 48-832830A45 Black Max Sport Series
15 17 3 2200-3900 21-35 48-832828A45 Black Max Sport Series
15.3 15 3 2700-5300 16-29 48- 78116A45 Black Max Sport Series
16 13 3 3300-8100 11-24 48- 78114A45 Black Max Sport Series
16 11 3 6000+ 1-18 48- 78112A45 Black Max Sport Series

90 STD HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1400-1900 40-52 48-8M0151364 SpitFire X7 Elite Series
12.7 19 4 1600-2300 34-47 48-8M0151363 SpitFire X7 Elite Series
13 17 4 1800-2800 28-41 48-8M0151362 SpitFire X7 Elite Series
13.5 15 4 2200-3700 22-35 48-8M0151361 SpitFire X7 Elite Series
13 18 3 4000+ 31-44 48-8M0151402 Vengeance Sport Series
13.1 16 3 2000-3200 25-38 48-8M0151401 Vengeance Sport Series
13.25 15 3 2200-3700 22-35 48-8M0151400 Vengeance Sport Series
13.3 14 3 2400-4400 19-32 48-8M0151399 Vengeance Sport Series
14 12 3 2700-5300 13-26 48-8M0151398 Vengeance Sport Series
12.8 19 4 1600-2300 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 1800-2800 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 4 4 3 2200-3700 22-35 48-8M8026580 SpitFire Elite Series
SpitFire
13
Elite Series
2700-5300
13.8
16-29
48-8M8026570
MERCURY PROPELLER RIGGING CHART 320 21 3 3 3 3 3 3 3 3 1400-1900 40-52 Place Orders | Print Invoices | Register Product | Pay Online
SpitFire
11
10-23
4000+
48-8M8026560
Elite Series
13.8
45-57
48- 77350A45
1300-1600
23
12.5
Sport Series
Black Max
12.75
Sport Series
Black Max
48- 77348A45
34-47
Black Max
Sport Series
48- 77346A45
19
1600-2300
13
Black Max
Sport Series
48- 77344A45
17
1800-2800
28-41
13.25
Sport Series
16
13.25
48-854360A45
25-38
Black Max
2000-3200
Sport Series
13.75
Black Max
15
22-35
2200-3700
48- 77342A45
Black Max
13.8
19-32
14
48-854352A45
Sport Series
2400-4400
2700-5300
Black Max
13
48- 77340A45
14
16-29
Sport Series
Sport Series
11
1-22
4000+
Black Max
14
48- 77338A45
