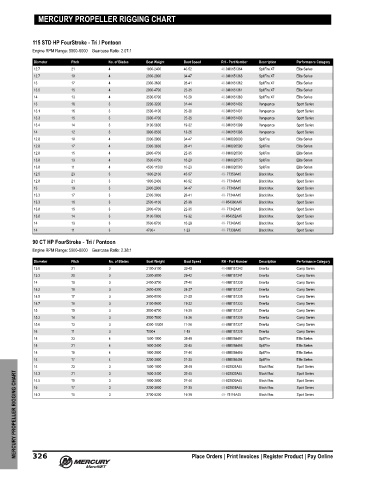

MERCURY PROPELLER RIGGING CHART

115 STD HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2400 40-52 48-8M0151364 SpitFire X7 Elite Series
12.7 19 4 2000-2900 34-47 48-8M0151363 SpitFire X7 Elite Series
13 17 4 2300-3600 28-41 48-8M0151362 SpitFire X7 Elite Series
13.5 15 4 2800-4700 22-35 48-8M0151361 SpitFire X7 Elite Series
14 13 4 3500-6700 16-29 48-8M0151360 SpitFire X7 Elite Series
13 18 3 2200-3200 31-44 48-8M0151402 Vengeance Sport Series
13.1 16 3 2500-4100 25-38 48-8M0151401 Vengeance Sport Series
13.3 15 3 2800-4700 22-35 48-8M0151400 Vengeance Sport Series
13.4 14 3 3100-5600 19-32 48-8M0151399 Vengeance Sport Series
14 12 3 3900-8500 13-26 48-8M0151398 Vengeance Sport Series
12.8 19 4 2000-2900 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 2300-3600 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 2800-4700 22-35 48-8M8026580 SpitFire Elite Series
13.8 13 4 3500-6700 16-29 48-8M8026570 SpitFire Elite Series
13.8 11 4 4500-11500 10-23 48-8M8026560 SpitFire Elite Series
12.5 23 3 1600-2100 45-57 48- 77350A45 Black Max Sport Series
12.8 21 3 1800-2400 40-52 48- 77348A45 Black Max Sport Series
13 19 3 2000-2900 34-47 48- 77346A45 Black Max Sport Series
13.3 17 3 2300-3600 28-41 48- 77344A45 Black Max Sport Series
13.3 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series
13.8 15 3 2800-4700 22-35 48- 77342A45 Black Max Sport Series
13.8 14 3 3100-5600 19-32 48-854352A45 Black Max Sport Series
14 13 3 3500-6700 16-29 48- 77340A45 Black Max Sport Series
14 11 3 4700+ 1-23 48- 77338A45 Black Max Sport Series
90 CT HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.8 21 3 2100-3100 32-45 48-8M0151243 Enertia Comp Series
13.3 20 3 2300-3500 29-42 48-8M0151241 Enertia Comp Series
14 19 3 2400-3700 27-40 48-8M0151239 Enertia Comp Series
14.2 18 3 2600-4300 24-37 48-8M0151237 Enertia Comp Series
14.5 17 3 2800-5000 21-35 48-8M0151235 Enertia Comp Series
14.7 16 3 3100-5600 19-32 48-8M0151233 Enertia Comp Series
15 15 3 3500-6700 16-29 48-8M0151231 Enertia Comp Series
15.3 14 3 3900-7800 14-26 48-8M0151229 Enertia Comp Series
15.6 13 3 4300-10300 11-24 48-8M0151227 Enertia Comp Series
16 11 3 7000+ 1-18 48-8M0151225 Enertia Comp Series
14 23 4 1500-1900 38-49 48-8M0084497 SpitFire Elite Series
14 21 4 1600-2400 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 1900-2900 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2200-3900 21-35 48-8M0084494 SpitFire Elite Series
14 23 3 3 3 3 1500-1900 38-49 48-832834A45 Black Max Sport Series
