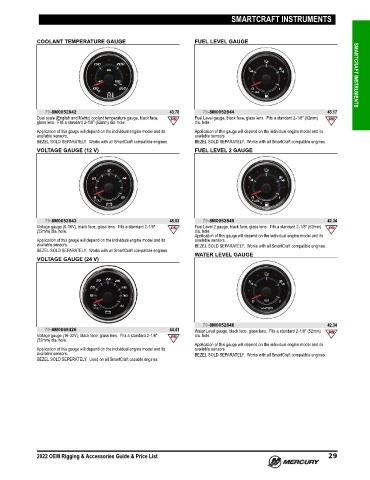

Page 42 - Rigging and Accessories Guide (2022) - 8M0187689
P. 42

SMARTCRAFT INSTRUMENTS



             COOLANT TEMPERATURE GAUGE                           FUEL LEVEL GAUGE                                     SMARTCRAFT INSTRUMENTS












                79-8M0052842                             43.78      79-8M0052844                             43.17
             Dual scale (English and Metric) coolant temperature gauge, black face,  Fuel Level gauge, black face, glass lens.  Fits a standard 2‑1/8" (52mm)
             glass lens.  Fits a standard 2‑1/8" (52mm) dia. hole.  dia. hole.
             Application of this gauge will depend on the individual engine model and its  Application of this gauge will depend on the individual engine model and its
             available sensors.                                  available sensors.
             BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.  BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
             VOLTAGE GAUGE (12 V)                                FUEL LEVEL 2 GAUGE













                79-8M0052843                             45.03      79-8M0052845                             42.34
             Voltage gauge (8‑16V), black face, glass lens.  Fits a standard 2‑1/8"  Fuel Level 2 gauge, black face, glass lens.  Fits a standard 2‑1/8" (52mm)
             (52mm) dia. hole.                                   dia. hole.
                                                                 Application of this gauge will depend on the individual engine model and its
             Application of this gauge will depend on the individual engine model and its  available sensors.
             available sensors.                                  BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
             BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
                                                                 WATER LEVEL GAUGE
             VOLTAGE GAUGE (24 V)











                                                                    79-8M0052846                             42.34
                79-8M0069426                             44.41   Water Level gauge, black face, glass lens.  Fits a standard 2‑1/8" (52mm)
             Voltage gauge (16‑32V), black face, glass lens.  Fits a standard 2‑1/8"  dia. hole.
             (52mm) dia. hole.
                                                                 Application of this gauge will depend on the individual engine model and its
             Application of this gauge will depend on the individual engine model and its  available sensors.
             available sensors.                                  BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
             BEZEL SOLD SEPERATELY.  Used on all SmartCraft capable engines

















             2022 OEM Rigging & Accessories Guide & Price List                                                29
