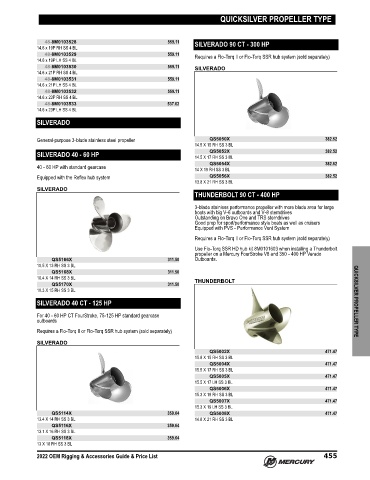

Page 468 - Rigging and Accessories Guide (2022) - 8M0187689

QUICKSILVER PROPELLER TYPE

48-8M0103528 559.11 SILVERADO 90 CT - 300 HP
14.6 x 19P RH SS 4 BL
48-8M0103529 559.11 Requires a Flo‑Torq II or Flo‑Torq SSR hub system (sold separately)
14.6 x 19P LH SS 4 BL
48-8M0103530 559.11 SILVERADO
14.6 x 21P RH SS 4 BL
48-8M0103531 559.11
14.6 x 21P LH SS 4 BL
48-8M0103532 559.11
14.6 x 23P RH SS 4 BL
48-8M0103533 537.62
14.6 x 23P LH SS 4 BL
SILVERADO

General‑purpose 3‑blade stainless steel propeller QS5050X 382.52
14.5 X 15 RH SS 3 BL
QS5052X
SILVERADO 40 - 60 HP 14.5 X 17 RH SS 3 BL 382.52
QS5054X 382.52
40 ‑ 60 HP with standard gearcase 14 X 19 RH SS 3 BL
Equipped with the Reflex hub system QS5056X 382.52
13.8 X 21 RH SS 3 BL
SILVERADO
THUNDERBOLT 90 CT - 400 HP

3‑blade stainless performance propeller with more blade area for large
boats with big V‑6 outboards and V‑8 sterndrives
Outstanding on Bravo One and TRS sterndrives
Good prop for sport/performance style boats as well as cruisers
Equipped with PVS ‑ Performance Vent System
Requires a Flo‑Torq II or Flo‑Torq SSR hub system (sold separately)

Use Flo‑Torq SSR HD hub kit 8M0101603 when installing a Thunderbolt
propeller on a Mercury FourStroke V8 and 350 ‑ 400 HP Verado
QS5166X 311.50 Outboards.
10.5 X 13 RH SS 3 BL
QS5168X 311.50
10.4 X 14 RH SS 3 BL THUNDERBOLT
QS5170X 311.50
10.3 X 15 RH SS 3 BL

SILVERADO 40 CT - 125 HP QUICKSILVER PROPELLER TYPE
For 40 ‑ 60 HP CT FourStroke, 75‑125 HP standard gearcase
outboards
Requires a Flo‑Torq II or Flo‑Torq SSR hub system (sold separately)
SILVERADO
QS5002X 471.47
15.8 X 15 RH SS 3 BL
QS5004X 471.47
15.5 X 17 RH SS 3 BL
QS5005X 471.47
15.5 X 17 LH SS 3 BL
QS5006X 471.47
15.3 X 19 RH SS 3 BL
QS5007X 471.47
15.3 X 19 LH SS 3 BL
QS5114X 359.64 QS5008X 471.47
13.4 X 14 RH SS 3 BL 14.8 X 21 RH SS 3 BL
QS5116X 359.64
13.1 X 16 RH SS 3 BL
QS5118X 359.64
13 X 18 RH SS 3 BL
2022 OEM Rigging & Accessories Guide & Price List 455
