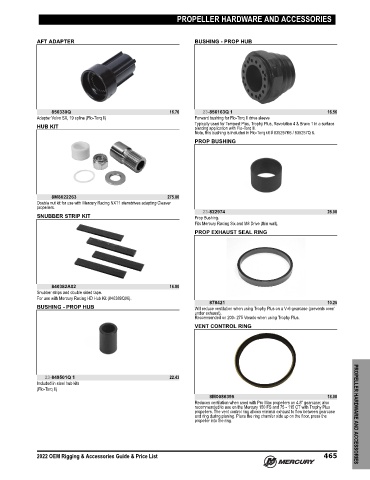

Page 478 - Rigging and Accessories Guide (2022) - 8M0187689

PROPELLER HARDWARE AND ACCESSORIES

AFT ADAPTER BUSHING - PROP HUB

850330Q 16.76 23-856163Q 1 16.56
Adapter Volvo SX, 19 spline (Flo‑Torq II) Forward bushing for Flo‑Torq II drive sleeve
Typically used for Tempest Plus, Trophy Plus, Revolution 4 & Bravo 1 in a surface
HUB KIT piercing application with Flo‑Torq II.
Note, this bushing is included in Flo‑Torq kit # 835257K6 / 835257Q 6.
PROP BUSHING

8M8022263 275.00
Double nut kit for use with Mercury Racing NXT1 sterndrives adapting Cleaver
propellers.
23-822974 28.00
SNUBBER STRIP KIT Prop Bushing.
Fits Mercury Racing Six and M8 Drive (thin wall).
PROP EXHAUST SEAL RING

840382A02 16.00
Snubber strips and double sided tape.
For use with Mercury Racing HD Hub Kit (840389Q06).
878421 10.25
BUSHING - PROP HUB Will reduce ventilation when using Trophy Plus on a V‑6 gearcase (prevents over/
under exhaust).
Recommended on 200‑ 275 Verado when using Trophy Plus.
VENT CONTROL RING

23-849501Q 1 22.43
Included in steel hub kits
(Flo‑Torq II)
8M0086395 18.00
Reduces ventilation when used with Pro Max propellers on 4.8" gearcase; also
recommended to use on the Mercury 150 FS and 75 ‑ 115 CT with Trophy Plus
propellers. The vent control ring allows minimal exhaust to flow between gearcase
and ring during planing. Place the ring chamfer side up on the floor, press the PROPELLER HARDWARE AND ACCESSORIES
propeller into the ring.

2022 OEM Rigging & Accessories Guide & Price List 465
