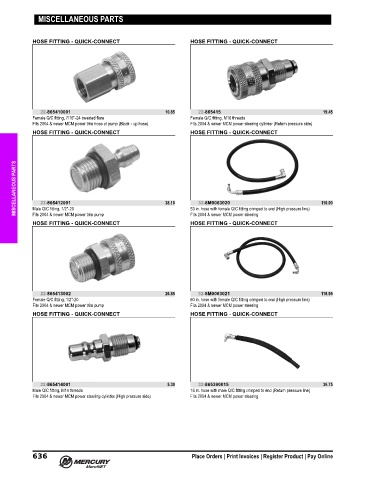

MISCELLANEOUS PARTS
HOSE FITTING - QUICK-CONNECT HOSE FITTING - QUICK-CONNECT
22-865410001 10.85 22-865415 19.45
Female Q/C fitting, 7/16"‑24 inverted flare Female Q/C fitting, M16 threads
Fits 2004 & newer MCM power trim hose at pump (Black ‑ up hose) Fits 2004 & newer MCM power steering cylinder (Return pressure side)
HOSE FITTING - QUICK-CONNECT HOSE FITTING - QUICK-CONNECT
MISCELLANEOUS PARTS 22-865412001 38.10 32-8M0063020 110.00
Male Q/C fitting, 1/2"‑20
Fits 2004 & newer MCM power steering
Fits 2004 & newer MCM power trim pump
HOSE FITTING - QUICK-CONNECT 53 in. hose with female Q/C fitting crimped to end (High pressure line)
HOSE FITTING - QUICK-CONNECT
22-865413002 26.85 32-8M0063021 118.95
Female Q/C fitting, 1/2"‑20 60 in. hose with female Q/C fitting crimped to end (High pressure line)
Fits 2004 & newer MCM power trim pump Fits 2004 & newer MCM power steering
HOSE FITTING - QUICK-CONNECT HOSE FITTING - QUICK-CONNECT
22-865414001 5.30 32-865390015 36.75
Male Q/C fitting, M14 threads 16 in. hose with male Q/C fitting crimped to end (Return pressure line)
Fits 2004 & newer MCM power steering cylinder (High pressure side) Fits 2004 & newer MCM power steering
