MERCRUISER

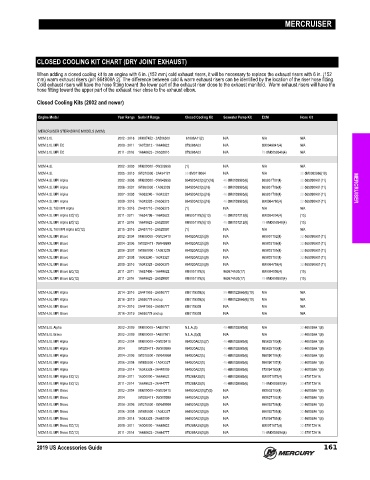

CLOSED COOLING KIT CHART (DRY JOINT EXHAUST)

When adding a closed cooling kit to an engine with 6 in. (152 mm) cold exhaust risers, it will be necessary to replace the exhaust risers with 6 in. (152
mm) warm exhaust risers (p/n 864908A 2). The difference between cold & warm exhaust risers can be identified by the location of the riser hose fitting.
Cold exhaust risers will have the hose fitting toward the lower part of the exhaust riser close to the exhaust manifold. Warm exhaust risers will have the
hose fitting toward the upper part of the exhaust riser close to the exhaust elbow.
Closed Cooling Kits (2002 and newer)

Engine Model Year Range Serial # Range Closed Cooling Kit Seawater Pump Kit ECM Hose Kit

MERCRUISER STERNDRIVE MODELS (MCM)
MCM 3.0L 2002 - 2016 0M087452 - 2A506300 61086A11(2) N/A N/A N/A
MCM 3.0L MPI EC 2008 - 2011 1A072812 - 1A648622 879288A02 N/A 8M0049841(4) N/A
MCM 3.0L MPI EC 2011 - 2016 1A648623 - 2A502810 879288A02 N/A 78-8M0059346(4) N/A

MCM 4.3L 2002 - 2005 0M600000 - 0W309999 (1) N/A N/A N/A
MCM 4.3L 2005 - 2015 0W310000 - 2A454127 98-8M0118064 N/A N/A 32-8M0082066(18)
MCM 4.3L MPI Alpha 2002 - 2006 0M600000 - 0W649999 864920A02(5)(7)(16) 46-8M0139983(6) 865831T07(4) 32-865090A01(11)
MCM 4.3L MPI Alpha 2006 - 2007 0W650000 - 1A063239 864920A02(5)(16) 46-8M0139983(6) 865831T06(4) 32-865090A01(11) MERCRUISER
MCM 4.3L MPI Alpha 2007 - 2008 1A063240 - 1A343327 864920A02(5)(16) 46-8M0139983(6) 865831T08(4) 32-865090A01(11)
MCM 4.3L MPI Alpha 2009 - 2016 1A343328 - 2A506375 864920A02(5)(16) 46-8M0139983(6) 8M0064760(4) 32-865090A01(11)
MCM 4.3L 180 MPI Alpha 2015 - 2016 2A457710 - 2A506375 (1) N/A N/A N/A
MCM 4.3L MPI Alpha EC(12) 2011 - 2011 1A634796 - 1A648622 8M0051178(5)(13) 46-8M0137212(6) 8M0054004(4) (15)
MCM 4.3L MPI Alpha EC(12) 2011 - 2016 1A648623 - 2A528897 8M0051178(5)(13) 46-8M0137212(6) 78-8M0059348(4) (15)
MCM 4.3L 180 MPI Alpha EC(12) 2015 - 2016 2A457710 - 2A528897 (1) N/A N/A N/A
MCM 4.3L MPI Bravo 2002 - 2004 0M600000 - 0W029410 864920A02(5)(9) N/A 865001T02(4) 32-865090A01(11)
MCM 4.3L MPI Bravo 2004 - 2006 0W029411 - 0W649999 864920A02(5)(9) N/A 865833T06(4) 32-865090A01(11)
MCM 4.3L MPI Bravo 2006 - 2007 0W650000 - 1A063239 864920A02(5)(9) N/A 865833T05(4) 32-865090A01(11)
MCM 4.3L MPI Bravo 2007 - 2008 1A063240 - 1A343327 864920A02(5)(9) N/A 865833T07(4) 32-865090A01(11)
MCM 4.3L MPI Bravo 2009 - 2016 1A343328 - 2A506375 864920A02(5)(9) N/A 8M0064759(4) 32-865090A01(11)
MCM 4.3L MPI Bravo EC(12) 2011 - 2011 1A637496 - 1A648622 8M0051178(5) 863674A05(17) 8M0054006(4) (15)
MCM 4.3L MPI Bravo EC(12) 2011 - 2016 1A648623 - 2A528897 8M0051178(5) 863674A05(17) 78-8M0059350(4) (15)

MCM 4.5L MPI Alpha 2014 - 2016 2A441953 - 2A530777 8M0119309(5) 98-8M0122666(6)(19) N/A N/A
MCM 4.5L MPI Alpha 2016 - 2019 2A530778 and up 8M0119309(5) 98-8M0122666(6)(19) N/A N/A
MCM 4.5L MPI Bravo 2014 - 2016 2A441953 - 2A530777 8M0119309 N/A N/A N/A
MCM 4.5L MPI Bravo 2016 - 2019 2A530778 and up 8M0119309 N/A N/A N/A

MCM 5.0L Alpha 2002 - 2009 0M600000 - 1A607561 N.L.A.(5) 46-8M0139983(6) N/A 32-865039A 1(8)
MCM 5.0L Bravo 2002 - 2009 0M600000 - 1A607561 N.L.A.(5)(9) N/A N/A 32-865039A 1(8)
MCM 5.0L MPI Alpha 2002 - 2004 0M600000 - 0W029410 864920A02(5)(7) 46-8M0139983(6) 865835T03(4) 32-865039A 1(8)
MCM 5.0L MPI Alpha 2004 0W029411 - 0W309999 864920A02(5) 46-8M0139983(6) 865835T03(4) 32-865039A 1(8)
MCM 5.0L MPI Alpha 2004 - 2006 0W310000 - 0W649999 864920A02(5) 46-8M0139983(6) 866190T06(4) 32-865039A 1(8)
MCM 5.0L MPI Alpha 2006 - 2008 0W650000 - 1A343327 864920A02(5) 46-8M0139983(6) 866190T07(4) 32-865039A 1(8)
MCM 5.0L MPI Alpha 2009 - 2014 1A343328 - 2A445009 864920A02(5) 46-8M0139983(6) 879194T83(4) 32-865039A 1(8)
MCM 5.0L MPI Alpha EC(12) 2008 - 2011 1A300000 - 1A648622 879288A39(5) 46-8M0139983(6) 8M0071875(4) 32-879172A16
MCM 5.0L MPI Alpha EC(12) 2011 - 2014 1A648623 - 2A444777 879288A39(5) 46-8M0139983(6) 78-8M0059352(4) 32-879172A16
MCM 5.0L MPI Bravo 2002 - 2004 0M600000 - 0W029410 864920A02(5)(7)(9) N/A 865003T03(4) 32-865039A 1(8)
MCM 5.0L MPI Bravo 2004 0W029411 - 0W309999 864920A02(5)(9) N/A 865837T02(4) 32-865039A 1(8)
MCM 5.0L MPI Bravo 2004 - 2006 0W310000 - 0W649999 864920A02(5)(9) N/A 866192T06(4) 32-865039A 1(8)
MCM 5.0L MPI Bravo 2006 - 2008 0W650000 - 1A343327 864920A02(5)(9) N/A 866192T05(4) 32-865039A 1(8)
MCM 5.0L MPI Bravo 2009 - 2014 1A343328 - 2A445009 864920A02(5)(9) N/A 879194T85(4) 32-865039A 1(8)
MCM 5.0L MPI Bravo EC(12) 2008 - 2011 1A300000 - 1A648622 879288A39(5)(9) N/A 8M0071877(4) 32-879172A16
MCM 5.0L MPI Bravo EC(12) 2011 - 2014 1A648623 - 2A444777 879288A39(5)(9) N/A 78-8M0059354(4) 32-879172A16
