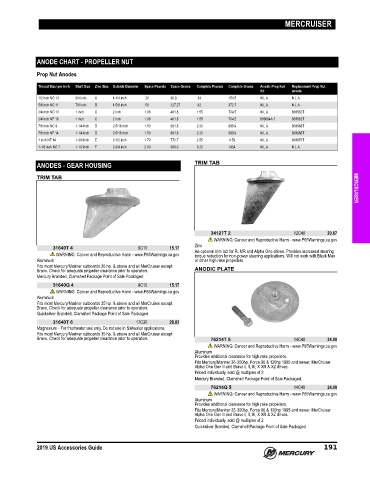

Page 204 - US ACCESSORIES GUIDE (2019)

MERCRUISER

ANODE CHART - PROPELLER NUT

Prop Nut Anodes
Thread Size/ per inch Shaft Size Zinc Size Outside Diameter Space Pounds Space Grams Complete Pounds Complete Grams Anodic Prop Nut Replacement Prop Nut
Kit Anode
1/2 inch NC 13 3/4 inch A 1-1/4 inch .20 90.9 .34 154.5 N.L.A. N.L.A.
5/8 inch NC 11 7/8 inch B 1-5/8 inch .50 227.27 .82 372.7 N.L.A. N.L.A.
3/4 inch NC 10 1 inch C 2 inch 1.06 481.8 1.55 704.5 N.L.A. 809662T
3/4 inch NF 16 1 inch C 2 inch 1.06 481.8 1.55 704.5 809664A 1 809662T
7/8 inch NC 9 1-1/4 inch D 2-5/16 inch 1.50 681.8 2.20 999.9 N.L.A. 809666T
7/8 inch NF 14 1-1/4 inch D 2-5/16 inch 1.50 681.8 2.20 999.9 N.L.A. 809666T
1 inch NF 14 1-3/8 inch E 2-1/2 inch 1.70 772.7 2.55 1159 N.L.A. 809670T
1-1/8 inch NC 7 1-1/2 inch F 2-3/4 inch 2.00 909.0 3.20 1454 N.L.A. N.L.A.

ANODES - GEAR HOUSING TRIM TAB

TRIM TAB MERCRUISER

34127T 2 12C40 20.67
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
31640T 4 9C10 15.17 Zinc
An optional trim tab for R, MR and Alpha One drives. Provides increased steering
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov torque reduction for non‑power steering applications. Will not work with Black Max
Aluminum or other high rake propellers.
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation. ANODIC PLATE
Mercury Branded, Clamshell Package Point of Sale Packaged.
31640Q 4 9C10 15.17
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Aluminum
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
31640T 6 17C30 28.83
Magnesium ‑ For freshwater use only. Do not use in Saltwater applications.
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation. 76214T 5 14C40 24.00
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Aluminum
Provides additional clearance for high rake propellers.
Fits Mercury/Mariner 35‑300hp, Force 90 & 120hp 1995 and newer, MerCruiser
Alpha One Gen II and Bravo I, II, III, X XR & XZ drives.
Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.
76214Q 5 14C40 24.00
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Aluminum
Provides additional clearance for high rake propellers.
Fits Mercury/Mariner 35‑300hp, Force 90 & 120hp 1995 and newer, MerCruiser
Alpha One Gen II and Bravo I, II, III, X XR & XZ drives.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
