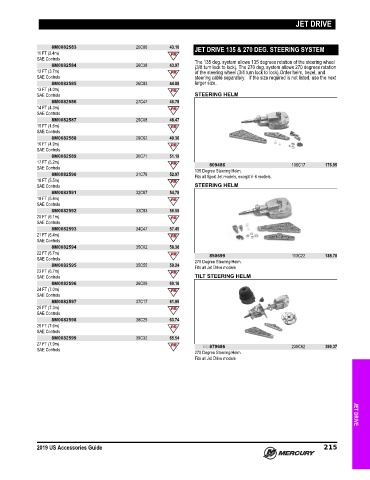

Page 228 - US ACCESSORIES GUIDE (2019)

JET DRIVE

8M0082583 25C86 43.10 JET DRIVE 135 & 270 DEG. STEERING SYSTEM
11 FT (3.4m)
SAE Controls The 135 deg. system allows 135 degrees rotation of the steering wheel
8M0082584 26C38 43.97 (3/8 turn lock to lock). The 270 deg. system allows 270 degrees rotation
12 FT (3.7m) of the steering wheel (3/4 turn lock to lock).Order helm, bezel, and
SAE Controls steering cable separately. If the size required is not listed, use the next
8M0082585 26C93 44.88 larger size.
13 FT (4.0m)
SAE Controls STEERING HELM
8M0082586 27C47 45.78
14 FT (4.3m)
SAE Controls
8M0082587 29C08 48.47
15 FT (4.6m)
SAE Controls
8M0082588 29C62 49.36
16 FT (4.9m)
SAE Controls
8M0082589 30C71 51.19
17 FT (5.2m) 809486 106C17 176.95
SAE Controls 135 Degree Steering Helm.
8M0082590 31C78 52.97 Fits all Sport Jet models, except V‑6 models.
18 FT (5.5m)
SAE Controls STEERING HELM
8M0082591 32C87 54.78
19 FT (5.8m)
SAE Controls
8M0082592 33C93 56.55
20 FT (6.1m)
SAE Controls
8M0082593 34C47 57.45
21 FT (6.4m)
SAE Controls
8M0082594 35C02 58.36
22 FT (6.7m) 850699 113C22 188.70
SAE Controls 270 Degree Steering Helm.
8M0082595 35C55 59.24 Fits all Jet Drive models
23 FT (6.7m)
SAE Controls TILT STEERING HELM
8M0082596 36C09 60.16
24 FT (7.0m)
SAE Controls
8M0082597 37C17 61.95
25 FT (7.3m)
SAE Controls
8M0082598 38C25 63.74
26 FT (7.6m)
SAE Controls
8M0082599 39C32 65.54
27 FT (7.9m) 64-879686 239C62 399.37
SAE Controls
270 Degree Steering Helm.
Fits all Jet Drive models

2019 US Accessories Guide 215 JET DRIVE
