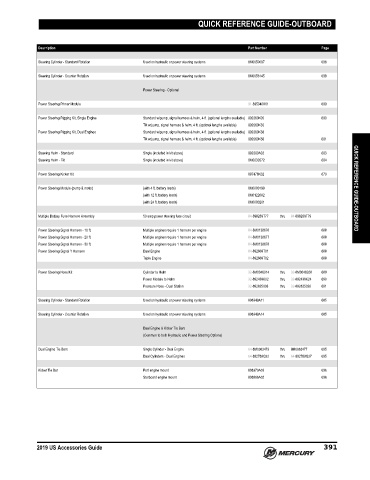

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Steering Cylinder - Standard Rotation Used on hydraulic or power steering systems 8M0050097 698

Steering Cylinder - Counter Rotation Used on hydraulic or power steering systems 8M0056145 698

Power Steering - Optional

Power Steering Primer Module 91-895040K01 689

Power Steering Rigging Kit, Single Engine Standard w/pump, signal harness & helm, 4 ft. (optional lengths available) 892380K05 680
Tilt w/pump, signal harness & helm, 4 ft. (optional lengths available) 892560K35
Power Steering Rigging Kit, Dual Engines Standard w/pump, signal harness & helm, 4 ft. (optional lengths available) 892380K36
Tilt w/pump, signal harness & helm, 4 ft. (optional lengths available) 892560K56 681

Steering Helm - Standard Single (included in kit above) 892380A02 683
Steering Helm - Tilt Single (included in kit above) 8M0030272 684

Power Steering Kicker Kit 897478K02 670

Power Steering Module (pump & motor) (with 4 ft. battery leads) 8M0080199 QUICK REFERENCE GUIDE-OUTBOARD
(with 12 ft. battery leads) 8M0122662
(with 24 ft. battery leads) 8M0080201

Multiple Battery Fuse Harness Assembly 50 amp power steering fuse circuit 84-898289T77 thru 84-898289T79

Power Steering Signal Harness - 10 ft. Multiple engines require 1 harness per engine 84-8M0138676 688
Power Steering Signal Harness - 20 ft. Multiple engines require 1 harness per engine 84-8M0138677 688
Power Steering Signal Harness - 30 ft. Multiple engines require 1 harness per engine 84-8M0138678 688
Power Steering Signal Y Harness Dual Engine 84-892868T01 688
Triple Engine 84-892868T02 688

Power Steering Hose Kit Cylinder to Helm 32-8M0046914 thru 32-8M0046928 689
Power Module to Helm 32-892438K02 thru 32-892438K24 690
Pressure Hose - Dual Station 32-892825008 thru 32-892825026 691

Steering Cylinder - Standard Rotation Used on hydraulic or power steering systems 898349A11 685

Steering Cylinder - Counter Rotation Used on hydraulic or power steering systems 898349A14 685

Dual Engine & Kicker Tie Bars
(Common to both Hydraulic and Power Steering Options)

Dual Engine Tie Bars Single Cylinder - Dual Engine 64-8M0063473 thru 8M0063477 695
Dual Cylinders - Dual Engines 64-892789Q22 thru 64-892789Q27 695

Kicker Tie Bar Port engine mount 898370A03 696
Starboard engine mount 898966A02 696

2019 US Accessories Guide 391
