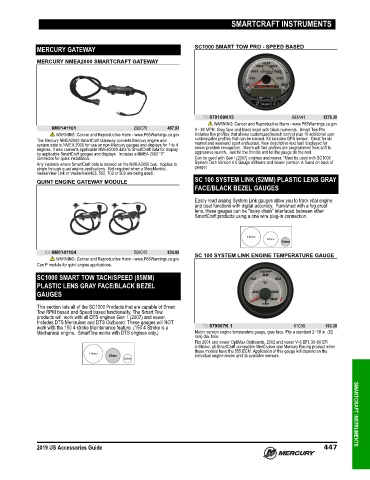

Page 460 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT INSTRUMENTS

MERCURY GATEWAY SC1000 SMART TOW PRO - SPEED BASED

MERCURY NMEA2000 SMARTCRAFT GATEWAY

79-879169K13 893A41 1276.30
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8M0141101 292C76 487.93 0 ‑ 80 MPH. Gray face and black bezel with black numerals. Smart Tow Pro
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov includes five profiles that allows customized launch control plus 10 additional user
The Mercury NMEA2000 SmartCraft Gateway converts Mercury engine and customizable profiles that can be named. Kit includes GPS sensor. Great for ski
system data to NMEA 2000 for use on non‑Mercury gauges and displays for 1 to 4 market and weekend sport enthusiast. New descriptive text fault displayed for
engines. It also converts applicable NMEA2000 data to SmartCraft data for display easier problem recognition. Users will find profiles are programmed from soft to
by applicable SmartCraft gauges and displays. Includes a NMEA 2000 "T" aggressive launch. Just hit the throttle and let the gauge do the rest.
connector for quick installation. Can be used with Gen I (2007) engines and newer. *Must be used with SC1000
Any instance where SmartCraft data is desired on the NMEA2000 bus. Applies to System Tach Version 4.0 Gauge software and newer (version is found on back of
single through quad engine applications. Not required when a MercMonitor, gauge)
VesselView Link or VesselView403, 502, 703 or 903 are being used.
QUINT ENGINE GATEWAY MODULE SC 100 SYSTEM LINK (52MM) PLASTIC LENS GRAY
FACE/BLACK BEZEL GAUGES

Easily read analog System Link gauges allow you to track vital engine
and boat functions with digital accuracy. Furnished with a fog proof
lens, these gauges can be "daisy chain" interfaced between other
SmartCraft products using a one wire plug‑in connection.

84-8M0141104 500C45 834.08 SC 100 SYSTEM LINK ENGINE TEMPERATURE GAUGE
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Can P module for quint engine applications.
SC1000 SMART TOW TACH/SPEED (85MM)
PLASTIC LENS GRAY FACE/BLACK BEZEL
GAUGES

This section lists all of the SC1000 Products that are capable of Smart
Tow RPM based and Speed based functionality. The Smart Tow
products will work with all DTS engines Gen 1 (2007) and newer.
Includes DTS Mercruiser and DTS Outboard. These gauges will NOT
work with the 150 4 stroke Maintenance feature. (150 4 Stroke is a 79-879907K 1 61C98 103.30
Mechanical engine. SmartTow works with DTS engines only.) Metric version engine temperature gauge, gray face. Fits a standard 2‑1/8 in. (52
mm) dia. hole.
Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
these models have the 555 ECM. Application of this gauge will depend on the
individual engine model and its available sensors.
