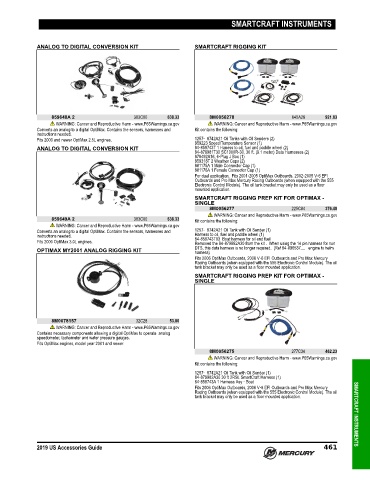

Page 474 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT INSTRUMENTS

ANALOG TO DIGITAL CONVERSION KIT SMARTCRAFT RIGGING KIT

859648A 2 383C00 638.33 8M0056278 645A28 921.83
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Converts an analog to a digital OptiMax. Contains the sensors, harnesses and Kit contains the following:
instructions needed.
Fits 2000 and newer OptiMax 2.5L engines. 1257‑ 8742A21 Oil Tanks with Oil Senders (2)
859223 Speed/Temperature Sensor (1)
ANALOG TO DIGITAL CONVERSION KIT 84‑859743T 1 Haness to oil, fuel and paddle wheel (2)
84‑879981T30 SC1000R‑30, 30 ft. (9.1 meter) Data Harnesses (2)
878492A16, 6‑Plug J Box (1)
859318T 2 Weather Caps (2)
881175A 1 Male Connector Cap (1)
881176A 1 Female Connector Cap (1)
For dual application. Fits 2001‑2005 OptiMax Outboards, 2002‑2005 V‑6 EFI
Outboards and Pro Max Mercury Racing Outboards (when equipped with the 555
Electronic Control Module). The oil tank bracket may only be used as a floor
mounted application.
SMARTCRAFT RIGGING PREP KIT FOR OPTIMAX -
SINGLE
8M0056277 225C84 376.40
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
859649A 2 383C00 638.33 Kit contains the following:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Converts an analog to a digital OptiMax. Contains the sensors, harnesses and 1257‑ 8742A21 Oil Tank with Oil Sender (1)
instructions needed. Harness to oil, fuel and paddle wheel (1)
Fits 2000 OptiMax 3.0L engines. 84‑859743T03 Boat harness for oil and fuel
Removed the 84‑879982A30 from the kit . When using the 14 pin harness for non
OPTIMAX MY2001 ANALOG RIGGING KIT DTS, this data harness is no longer required. (Ref 84‑896537__ engine to helm
harness)
Fits 2006 OptiMax Outboards, 2006 V‑6 EFI Outboards and Pro Max Mercury
Racing Outboards (when equipped with the 555 Electronic Control Module). The oil
tank bracket may only be used as a floor mounted application.
SMARTCRAFT RIGGING PREP KIT FOR OPTIMAX -
SINGLE

8M0078157 32C28 53.80
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Contains necessary components allowing a digital OptiMax to operate analog
speedometer, tachometer and water pressure gauges.
Fits OptiMax engines, model year 2001 and newer.
8M0056275 277C34 462.23
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Kit contains the following:
1257‑ 8742A21 Oil Tank with Oil Sender (1)
84‑879982A30 30 ft 2RSL SmartCraft Harness (1)
84‑859743A 1 Harness Asy ‑ Boat
Fits 2006 OptiMax Outboards, 2006 V‑6 EFI Outboards and Pro Max Mercury
Racing Outboards (when equipped with the 555 Electronic Control Module). The oil
tank bracket may only be used as a floor mounted application. SMARTCRAFT INSTRUMENTS

2019 US Accessories Guide 461
