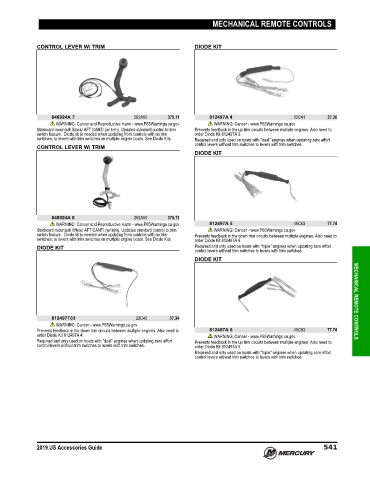

Page 554 - US ACCESSORIES GUIDE (2019)

MECHANICAL REMOTE CONTROLS

CONTROL LEVER W/ TRIM DIODE KIT

848924A 7 262A50 375.11 812497A 4 22C41 37.36
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
Starboard mounted/ Black/ AFT CANT/ (w/ trim). Updates standard control to trim Prevents feedback in the up trim circuits between multiple engines. Also need to
switch feature. Diode kit is needed when updating from controls with no trim order Diode Kit 812497A 3.
switches, to levers with trim switches on multiple engine boats. See Diode Kits. Required and only used on boats with "dual" engines when updating zero effort
control levers without trim switches to levers with trim switches.
CONTROL LEVER W/ TRIM
DIODE KIT

848924A 8 262A50 375.11
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 812497A 5 46C63 77.74
Starboard mounted/ White/ AFT CANT/ (w/ trim). Updates standard control to trim WARNING: Cancer - www.P65Warnings.ca.gov
switch feature. Diode kit is needed when updating from controls with no trim Prevents feedback in the down trim circuits between multiple engines. Also need to
switches, to levers with trim switches on multiple engine boats. See Diode Kits. order Diode Kit 812497A 6.
DIODE KIT Required and only used on boats with "triple" engines when updating zero effort
control levers without trim switches to levers with trim switches.
DIODE KIT

812497T03 22C40 37.34 MECHANICAL REMOTE CONTROLS
WARNING: Cancer - www.P65Warnings.ca.gov
Prevents feedback in the down trim circuits between multiple engines. Also need to 812497A 6 46C63 77.74
order Diode Kit 812497A 4. WARNING: Cancer - www.P65Warnings.ca.gov
Required and only used on boats with "dual" engines when updating zero effort Prevents feedback in the up trim circuits between multiple engines. Also need to
control levers without trim switches to levers with trim switches. order Diode Kit 812497A 5.
Required and only used on boats with "triple" engines when updating zero effort
control levers without trim switches to levers with trim switches.

2019 US Accessories Guide 541
