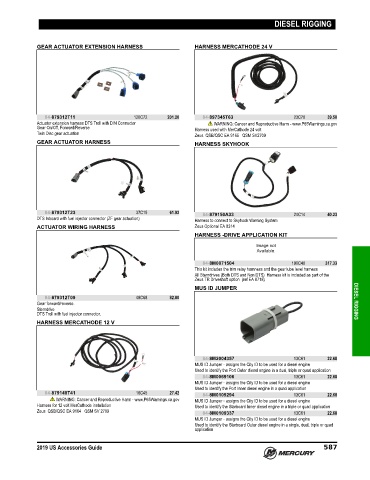

Page 600 - US ACCESSORIES GUIDE (2019)

DIESEL RIGGING

GEAR ACTUATOR EXTENSION HARNESS HARNESS MERCATHODE 24 V

84-879312T11 120C72 201.20 84-897345T63 23C70 39.50
Actuator extension harness DTS Troll with DIN Connector WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Gear On/Off, Forward/Reverse Harness used with MerCathode 24 volt
Twin Disc gear actuation Zeus QSB/QSC EA 9165 QSM SV2709
GEAR ACTUATOR HARNESS HARNESS SKYHOOK

84-879312T23 37C15 61.92 84-879150A33 24C14 40.23
DTS Inboard with fuel injector connector (ZF gear actuation) Harness to connect to Skyhook Warning System
ACTUATOR WIRING HARNESS Zeus Optional EA 8314
HARNESS -DRIVE APPLICATION KIT

84-8M0071504 190C40 317.33
This kit includes the trim relay harnness and the gear lube level harness
All Sterndrives (Both DTS and Non DTS) Harness kit is included as part of the
Zeus TR Driveshaft option (ref EA 8718)
MUS ID JUMPER
84-879312T09 49C68 82.80
Gear forward/reverse. DIESEL RIGGING
Sterndrive
DTS Troll with fuel injector connector.
HARNESS MERCATHODE 12 V

84-8M2004357 13C61 22.68
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Used to identify the Port Outer diesel engine in a dual, triple or quad application
84-8M0069106 13C61 22.68
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Used to identify the Port Inner diesel engine in a quad application
84-879148T41 16C45 27.42 84-8M0109294 13C61 22.68
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Harness for 12 volt MerCathode installation Used to identify the Starboard Inner diesel engine in a triple or quad application
Zeus QSB/QSC EA 9164 QSM SV 2709 84-8M0109337 13C61 22.68
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Used to identify the Starboard Outer diesel engine in a single, dual, triple or quad
application

2019 US Accessories Guide 587
