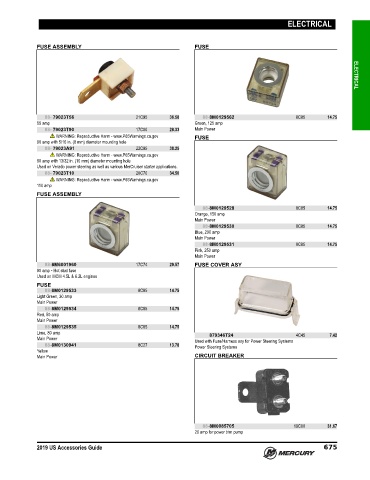

Page 688 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

FUSE ASSEMBLY FUSE ELECTRICAL

88- 79023T56 21C95 36.58 88-8M0129562 8C85 14.75
55 amp Green, 125 amp
88- 79023T90 17C00 28.33 Main Power
WARNING: Reproductive Harm - www.P65Warnings.ca.gov FUSE
90 amp with 5/16 in. (8 mm) diameter mounting hole
88- 79023A91 22C95 38.25
WARNING: Reproductive Harm - www.P65Warnings.ca.gov
90 amp with 13/32 in. (10 mm) diameter mounting hole
Used on Verado power steering as well as various MerCruiser starter applications.
88- 79023T10 20C70 34.50
WARNING: Reproductive Harm - www.P65Warnings.ca.gov
110 amp
FUSE ASSEMBLY

88-8M0129528 8C85 14.75
Orange, 150 amp
Main Power
88-8M0129530 8C85 14.75
Blue, 200 amp
Main Power
88-8M0129531 8C85 14.75
Pink, 250 amp
Main Power
88-8M6001960 17C74 29.57 FUSE COVER ASY
90 amp ‑ Hot stud fuse
Used on MCM 4.5L & 6.2L engines
FUSE
88-8M0129533 8C85 14.75
Light Green, 30 amp
Main Power
88-8M0129534 8C85 14.75
Red, 50 amp
Main Power
88-8M0129535 8C85 14.75
Lime, 80 amp 879346T24 4C45 7.42
Main Power Used with Fuse/Harness asy for Power Steering Systems
88-8M0130941 8C27 13.78 Power Steering Systems
Yellow
Main Power CIRCUIT BREAKER

88-8M0085705 19C00 31.67
20 amp for power trim pump

2019 US Accessories Guide 675
