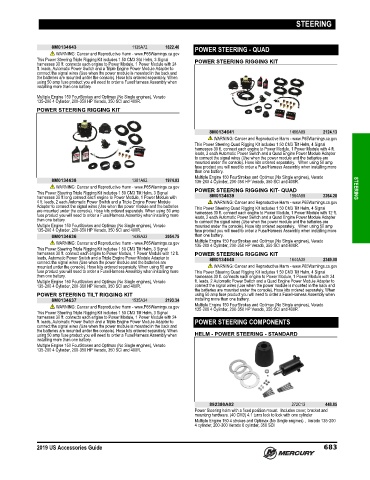

Page 696 - US ACCESSORIES GUIDE (2019)

STEERING

8M0134643 1135A72 1622.46 POWER STEERING - QUAD
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This Power Steering Triple Rigging Kit includes 1 50 CM3 Std Helm, 3 Signal POWER STEERING RIGGING KIT
harnesses 30 ft. connects each engine to Power Module, 1 Power Module with 24
ft. leads, Automatic Power Switch and a Triple Engine Power Module Adapter to
connect the signal wires (Use when the power module is mounted in the back and
the batteries are mounted under the console). Hose kits ordered separately. When
using 50 amp fuse product you will need to order a Fuse/Harness Assembly when
installing more than one battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
POWER STEERING RIGGING KIT

8M0134641 1486A89 2124.13
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This Power Steering Quad Rigging Kit includes 1 50 CM3 Tilt Helm, 4 Signal
harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 4 ft.
leads, 2 each Automatic Power Switch and a Quad Engine Power Module Adapter
to connect the signal wires (Use when the power module and the batteries are
mounted under the console). Hose kits ordered separately. When using 50 amp
fuse product you will need to order a Fuse/Harness Assembly when installing more
than one battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
8M0134638 1381A82 1974.03 135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov STEERING
This Power Steering Triple Rigging Kit includes 1 50 CM3 Tilt Helm, 3 Signal POWER STEERING RIGGING KIT- QUAD
harnesses 30 ft long connect each engine to Power Module, 1 Power Module with 8M0134639 1584A99 2264.28
4 ft. leads, 2 each Automatic Power Switch and a Triple Engine Power Module WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Adapter to connect the signal wires (Use when the power module and the batteries This Power Steering Quad Rigging Kit includes 1 50 CM3 Tilt Helm, 4 Signal
are mounted under the console). Hose kits ordered separately. When using 50 amp harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 12 ft.
fuse product you will need to order a Fuse/Harness Assembly when installing more leads, 2 each Automatic Power Switch and a Quad Engine Power Module Adapter
than one battery. to connect the signal wires (Use when the power module and the batteries are
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado mounted under the console). Hose kits ordered separately. When using 50 amp
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R. fuse product you will need to order a Fuse/Harness Assembly when installing more
8M0134636 1438A33 2054.75 than one battery.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
This Power Steering Triple Rigging Kit includes 1 50 CM3 Tilt Helm, 3 Signal
harnesses 30 ft. connect each engine to Power Module, 1 Power Module with 12 ft. POWER STEERING RIGGING KIT
leads, Automatic Power Switch and a Triple Engine Power Module Adapter to 8M0134640 1644A30 2349.00
connect the signal wires (Use when the power module and the batteries are
mounted under the console). Hose kits ordered separately. When using 50 amp WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
fuse product you will need to order a Fuse/Harness Assembly when installing more This Power Steering Quad Rigging Kit includes 1 50 CM3 Tilt Helm, 4 Signal
than one battery. harnesses 30 ft. connects each engine to Power Module, 1 Power Module with 24
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado ft. leads, 2 Automatic Power Switch and a Quad Engine Power Module Adapter to
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R. connect the signal wires (Use when the power module is mounted in the back and
the batteries are mounted under the console). Hose kits ordered separately. When
POWER STEERING TILT RIGGING KIT using 50 amp fuse product you will need to order a Fuse/Harness Assembly when
8M0134637 1535A34 2193.34 installing more than one battery.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.
This Power Steering Triple Rigging Kit includes 1 50 CM3 Tilt Helm, 3 Signal
harnesses 30 ft. connects each engine to Power Module, 1 Power Module with 24
ft. leads, Automatic Power Switch and a Triple Engine Power Module Adapter to POWER STEERING COMPONENTS
connect the signal wires (Use when the power module is mounted in the back and
the batteries are mounted under the console). Hose kits ordered separately. When
using 50 amp fuse product you will need to order a Fuse/Harness Assembly when HELM - POWER STEERING - STANDARD
installing more than one battery.
Multiple Engine 150 FourStrokes and Optimax (No Single engines), Verado
135‑200 4 Cylinder, 200‑350 HP Verado, 350 SCI and 400R.

892380A02 272C13 448.85
Power Steering helm with a fixed position mount. Includes cover, bracket and
mounting hardware. (40 CM3) 4.1 turns lock to lock with one cylinder
Multiple Engine 150 4 strokes and Optimax (No Single engines) , Verado 135‑200
4 cylinder, 200‑300 Verado 6 cylinder, 350 SCI

2019 US Accessories Guide 683
