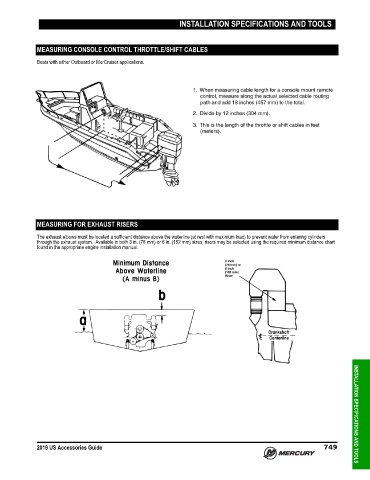

INSTALLATION SPECIFICATIONS AND TOOLS
MEASURING CONSOLE CONTROL THROTTLE/SHIFT CABLES
Boats with either Outboard or MerCruiser applications.
MEASURING FOR EXHAUST RISERS
The exhaust elbows must be located a sufficient distance above the waterline (at rest with maximum load) to prevent water from entering cylinders
through the exhaust system. Available in both 3 in. (76 mm) or 6 in. (152 mm) sizes, risers may be selected using the required minimum distance chart
found in the appropriate engine installation manual.
