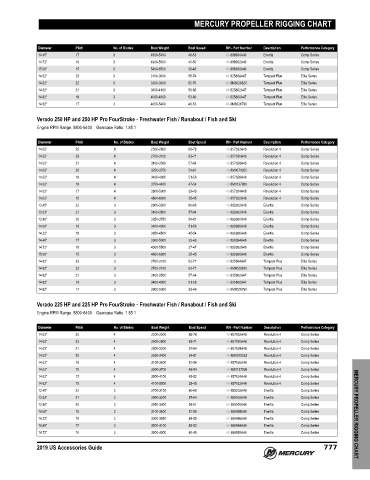

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.45” 17 3 4600-5400 46-53 48-898994A46 Enertia Comp Series
14.72” 16 3 4900-5800 43-50 48-898992A46 Enertia Comp Series
15.00” 15 3 5400-6500 39-46 48-898990A46 Enertia Comp Series
14.62” 23 3 3100-3600 65-74 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 3300-3800 62-70 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 3600-4100 59-66 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 4000-4600 53-60 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 4600-5400 46-53 48-8M8026790 Tempest Plus Elite Series

Verado 250 HP and 250 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.62” 25 4 2500-2800 69-78 48-857032A46 Revolution 4 Comp Series
14.62” 23 4 2700-3100 63-71 48-857030A46 Revolution 4 Comp Series
14.62” 21 4 3100-3500 57-64 48-857028A46 Revolution 4 Comp Series
14.62" 20 4 3250-3750 54-61 48-8M0070052 Revolution 4 Comp Series
14.62” 19 4 3400-4000 51-58 48-857026A46 Revolution 4 Comp Series
14.62" 18 4 3750-4400 47-54 48-8M0137906 Revolution 4 Comp Series
14.62” 17 4 3900-5000 39-49 48-857024A46 Revolution 4 Comp Series
14.62” 15 4 4600-6000 35-45 48-857022A46 Revolution 4 Comp Series
13.45” 22 3 2900-3300 60-68 48-899202A46 Enertia Comp Series
13.63” 21 3 3100-3500 57-64 48-899002A46 Enertia Comp Series
13.80” 20 3 3250-3750 54-61 48-899000A46 Enertia Comp Series
14.00” 19 3 3400-4000 51-58 48-898998A46 Enertia Comp Series
14.22” 18 3 3650-4500 45-54 48-898996A46 Enertia Comp Series
14.45” 17 3 3900-5000 39-49 48-898994A46 Enertia Comp Series
14.72” 16 3 4300-5500 37-47 48-898992A46 Enertia Comp Series
15.00” 15 3 4600-6000 35-45 48-898990A46 Enertia Comp Series
14.62” 23 3 2700-3100 63-71 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 2700-3100 63-71 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 3100-3500 57-64 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 3400-4000 51-58 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 3900-5000 39-49 48-8M8026790 Tempest Plus Elite Series

Verado 225 HP and 225 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.62” 25 4 2200-2500 69-78 48-857032A46 Revolution 4 Comp Series
14.62” 23 4 2500-2800 63-71 48-857030A46 Revolution 4 Comp Series
14.62” 21 4 2800-3200 57-64 48-857028A46 Revolution 4 Comp Series
14.62" 20 4 2950-3400 54-61 48-8M0070052 Revolution 4 Comp Series
14.62” 19 4 3100-3600 51-58 48-857026A46 Revolution 4 Comp Series
14.62" 18 4 3300-3700 48-54 48-8M0137906 Revolution 4 Comp Series
14.62” 17 4 3500-4100 45-52 48-857024A46 Revolution 4 Comp Series
14.62” 15 4 4100-5500 35-45 48-857022A46 Revolution 4 Comp Series
13.45” 22 3 2700-3100 60-68 48-899202A46 Enertia Comp Series
13.63” 21 3 2800-3200 57-64 48-899002A46 Enertia Comp Series
13.80” 20 3 2950-3400 54-61 48-899000A46 Enertia Comp Series
14.00” 19 3 3100-3600 51-58 48-898998A46 Enertia Comp Series MERCURY PROPELLER RIGGING CHART
14.22” 18 3 3300-3850 48-55 48-898996A46 Enertia Comp Series
14.45” 17 3 3500-4100 45-52 48-898994A46 Enertia Comp Series
14.72” 16 3 3800-4800 40-49 48-898992A46 Enertia Comp Series

2019 US Accessories Guide 777
