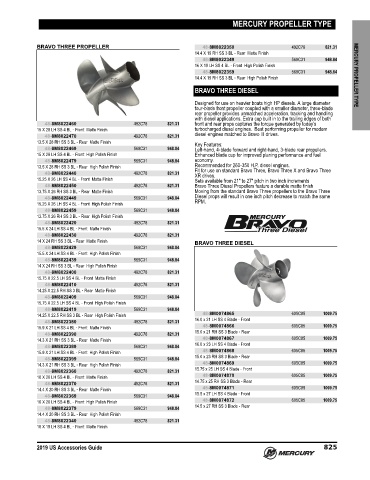

Page 838 - US ACCESSORIES GUIDE (2019)

MERCURY PROPELLER TYPE

BRAVO THREE PROPELLER 48-8M8022350 492C78 821.31
14.4 X 19 RH SS 3 BL ‑ Rear Matte Finish
48-8M8022349 569C31 948.84
16 X 19 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022359 569C31 948.84
14.4 X 19 RH SS 3 BL ‑ Rear High Polish Finish MERCURY PROPELLER TYPE
BRAVO THREE DIESEL

Designed for use on heavier boats high HP diesels. A large diameter
four‑blade front propeller coupled with a smaller diameter, three‑blade
rear propeller provides unmatched acceleration, tracking and handling
with diesel applications. Extra cup built in to the trailing edges of both
48-8M8022460 492C78 821.31 front and rear props captures the torque generated by today’s
15 X 28 LH SS 4 BL ‑ Front Matte Finish turbocharged diesel engines. Best performing propeller for modern
48-8M8022470 492C78 821.31 diesel engines matched to Bravo III drives.
13.5 X 28 RH SS 3 BL ‑ Rear Matte Finish Key Features:
48-8M8022469 569C31 948.84 Left‑hand, 4‑blade forward and right‑hand, 3‑blade rear propellers.
15 X 28 LH SS 4 BL ‑ Front High Polish Finish Enhanced blade cup for improved planing performance and fuel
48-8M8022479 569C31 948.84 economy.
13.5 X 28 RH SS 3 BL ‑ Rear High Polish Finish Recommended for 260‑350 H.P. diesel engines.
Fit for use on standard Bravo Three, Bravo Three X and Bravo Three
48-8M8022440 492C78 821.31 XR drives.
15.25 X 26 LH SS 4 BL ‑ Front Matte Finish Sets available from 21" to 27" pitch in two inch increments
48-8M8022450 492C78 821.31 Bravo Three Diesel Propellers feature a durable matte finish
13.75 X 26 RH SS 3 BL ‑ Rear Matte Finish Moving from the standard Bravo Three propellers to the Bravo Three
48-8M8022449 569C31 948.84 Diesel props will result in one inch pitch decrease to match the same
15.25 X 26 LH SS 4 BL ‑ Front High Polish Finish RPM.
48-8M8022459 569C31 948.84
13.75 X 26 RH SS 3 BL ‑ Rear High Polish Finish
48-8M8022420 492C78 821.31
15.5 X 24 LH SS 4 BL ‑ Front Matte Finish
48-8M8022430 492C78 821.31
14 X 24 RH SS 3 BL ‑ Rear Matte Finish BRAVO THREE DIESEL
48-8M8022429 569C31 948.84
15.5 X 24 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022439 569C31 948.84
14 X 24 RH SS 3 BL ‑ Rear High Polish Finish
48-8M8022400 492C78 821.31
15.75 X 22.5 LH SS 4 BL ‑ Front Matte Finish
48-8M8022410 492C78 821.31
14.25 X 22.5 RH SS 3 BL ‑ Rear Matte Finish
48-8M8022409 569C31 948.84
15.75 X 22.5 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022419 569C31 948.84
14.25 X 22.5 RH SS 3 BL ‑ Rear High Polish Finish 48-8M0074865 605C85 1009.75
48-8M8022380 492C78 821.31 16.0 x 21 LH SS 4 Blade ‑ Front
15.9 X 21 LH SS 4 BL ‑ Front Matte Finish 48-8M0074866 605C85 1009.75
48-8M8022390 492C78 821.31 15.0 x 21 RH SS 3 Blade ‑ Rear
14.3 X 21 RH SS 3 BL ‑ Rear Matte Finish 48-8M0074867 605C85 1009.75
48-8M8022389 569C31 948.84 16.0 x 23 LH SS 4 Blade ‑ Front
15.9 X 21 LH SS 4 BL ‑ Front High Polish Finish 48-8M0074868 605C85 1009.75
48-8M8022399 569C31 948.84 15.0 x 23 RH SS 3 Blade ‑ Rear
14.3 X 21 RH SS 3 BL ‑ Rear High Polish Finish 48-8M0074869 605C85 1009.75
48-8M8022360 492C78 821.31 15.75 x 25 LH SS 4 Blade ‑ Front
16 X 20 LH SS 4 BL ‑ Front Matte Finish 48-8M0074870 605C85 1009.75
48-8M8022370 492C78 821.31 14.75 x 25 RH SS 3 Blade ‑ Rear
14.4 X 20 RH SS 3 BL ‑ Rear Matte Finish 48-8M0074871 605C85 1009.75
48-8M8022369 569C31 948.84 15.5 x 27 LH SS 4 Blade ‑ Front
16 X 20 LH SS 4 BL ‑ Front High Polish Finish 48-8M0074872 605C85 1009.75
48-8M8022379 569C31 948.84 14.5 x 27 RH SS 3 Blade ‑ Rear
14.4 X 20 RH SS 3 BL ‑ Rear High Polish Finish
48-8M8022340 492C78 821.31
16 X 19 LH SS 4 BL ‑ Front Matte Finish

2019 US Accessories Guide 825
