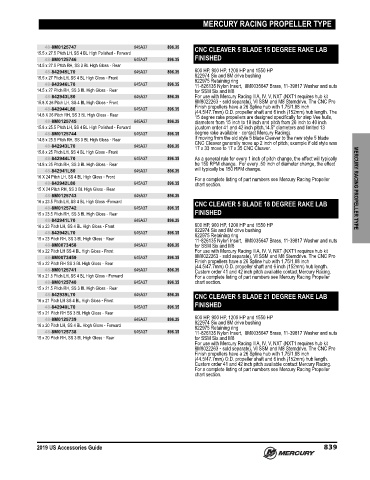

Page 852 - US ACCESSORIES GUIDE (2019)

MERCURY RACING PROPELLER TYPE

48-8M0125747 645A37 896.35 CNC CLEAVER 5 BLADE 15 DEGREE RAKE LAB
15.5 x 27.5 Pitch LH, SS 4 BL High Polished ‑ Forward
48-8M0125746 645A37 896.35 FINISHED
14.5 x 27.5 Pitch RH, SS 3 BL High Gloss ‑ Rear
48-842945L70 645A37 896.35 600 HP, 900 HP, 1200 HP and 1550 HP
15.5 x 27 Pitch LH, SS 4 BL High Gloss ‑ Front 822974 Six and 8M drive bushing
822975 Retaining ring
48-842946L70 645A37 896.35 11‑826135 Nylon Insert, 8M0035647 Brass, 11‑39817 Washer and nuts
14.5 x 27 Pitch RH, SS 3 BL High Gloss ‑ Rear for SSM Six and M8
48-842943L80 645A37 896.35 For use with Mercury Racing IIIA, IV, V, NXT (NXT1 requires hub kit
15.8 X 26 Pitch LH, SS 4 BL High Gloss ‑ Front 8M8022263 ‑ sold separate), VI SSM and M8 Sterndrive. The CNC Pro
48-842944L80 645A37 896.35 Finish propellers have a 26 Spline hub with 1.75/1.88 inch
(44.5/47.7mm) O.D. propeller shaft and 6 inch (152mm) hub length. The
14.8 X 26 Pitch RH, SS 3 BL High Gloss ‑ Rear 15 degree rake propellers are designed specifically for step Vee hulls,
48-8M0125745 645A37 896.35 diameters from 15 inch to 18 inch and pitch from 26 inch to 40 inch
15.8 x 25.5 Pitch LH, SS 4 BL High Polished ‑ Forward (custom order 41 and 42 inch pitch,14.5" diameters and limited 13
48-8M0125744 645A37 896.35 degree rake available ‑ contact Mercury Racing).
14.8 x 25.5 Pitch RH, SS 3 BL High Gloss ‑ Rear If moving from the old style 5 blade Cleaver to the new style 5 blade
CNC Cleaver generally move up 2 inch of pitch; example if old style was
48-842943L70 645A37 896.35 17 x 33 move to 17 x 35 CNC Cleaver.
15.8 x 25 Pitch LH, SS 4 BL High Gloss ‑ Front
48-842944L70 645A37 896.35 As a general rule for every 1 inch of pitch change, the effect will typically
14.8 x 25 Pitch RH, SS 3 BL High Gloss ‑ Rear be 150 RPM change. For every .50 inch of diameter change, the effect
48-842941L80 645A37 896.35 will typically be 150 RPM change.
16 X 24 Pitch LH, SS 4 BL High Gloss ‑ Front For a complete listing of part numbers see Mercury Racing Propeller
48-842942L80 645A37 896.35 chart section.
15 X 24 Pitch RH, SS 3 BL High Gloss ‑ Rear MERCURY RACING PROPELLER TYPE
48-8M0125743 645A37 896.35
16 x 23.5 Pitch LH, SS 4 BL High Gloss ‑Forward CNC CLEAVER 5 BLADE 18 DEGREE RAKE LAB
48-8M0125742 645A37 896.35
15 x 23.5 Pitch RH, SS 3 BL High Gloss ‑ Rear FINISHED
48-842941L70 645A37 896.35
16 x 23 Pitch LH, SS 4 BL High Gloss ‑ Front 600 HP, 900 HP, 1200 HP and 1550 HP
48-842942L70 645A37 896.35 822974 Six and 8M drive bushing
822975 Retaining ring
15 x 23 Pitch RH, SS 3 BL High Gloss ‑ Rear 11‑826135 Nylon Insert, 8M0035647 Brass, 11‑39817 Washer and nuts
48-8M0073458 645A37 896.35 for SSM Six and M8
16 x 22 Pitch LH SS 4 BL High Gloss ‑ Front For use with Mercury Racing IIIA, IV, V, NXT (NXT1 requires hub kit
48-8M0073459 645A37 896.35 8M8022263 ‑ sold separate), VI SSM and M8 Sterndrive. The CNC Pro
15 x 22 Pitch RH SS 3 BL High Gloss ‑ Rear Finish propellers have a 26 Spline hub with 1.75/1.88 inch
(44.5/47.7mm) O.D. propeller shaft and 6 inch (152mm) hub length.
48-8M0125741 645A37 896.35 Custom order 41 and 42 inch pitch available contact Mercury Racing.
16 x 21.5 Pitch LH, SS 4 BL High Gloss ‑ Forward For a complete listing of part numbers see Mercury Racing Propeller
48-8M0125740 645A37 896.35 chart section.
15 x 21.5 Pitch RH, SS 3 BL High Gloss ‑ Rear
48-842939L70 645A37 896.35 CNC CLEAVER 5 BLADE 21 DEGREE RAKE LAB
16 x 21 Pitch LH SS 4 BL High Gloss ‑ Front
48-842940L70 645A37 896.35 FINISHED
15 x 21 Pitch RH SS 3 BL High Gloss ‑ Rear
48-8M0125739 645A37 896.35 600 HP, 900 HP, 1200 HP and 1550 HP
822974 Six and 8M drive bushing
16 x 20 Pitch LH, SS 4 BL Hogh Gloss ‑ Forward 822975 Retaining ring
48-8M0125738 645A37 896.35 11‑826135 Nylon Insert, 8M0035647 Brass, 11‑39817 Washer and nuts
15 x 20 Pitch RH, SS 3 BL High Gloss ‑ Rear for SSM Six and M8
For use with Mercury Racing IIIA, IV, V, NXT (NXT1 requires hub kit
8M8022263 ‑ sold separate), VI SSM and M8 Sterndrive. The CNC Pro
Finish propellers have a 26 Spline hub with 1.75/1.88 inch
(44.5/47.7mm) O.D. propeller shaft and 6 inch (152mm) hub length.
Custom order 41 and 42 inch pitch available contact Mercury Racing.
For a complete listing of part numbers see Mercury Racing Propeller
chart section.

2019 US Accessories Guide 839
