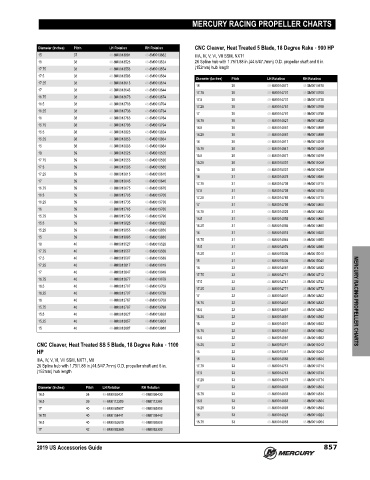

Page 870 - US ACCESSORIES GUIDE (2019)

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation CNC Cleaver, Heat Treated 5 Blade, 18 Degree Rake ‑ 900 HP
15 37 48-8M0013881 48-8M0013882 IIIA, IV, V, VI, VII SSM, NXT1
18 38 48-8M0013523 48-8M0013524 26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in.
17.75 38 48-8M0013553 48-8M0013554 (152mm) hub length
17.5 38 48-8M0013583 48-8M0013584
Diameter (Inches) Pitch LH Rotation RH Rotation
17.25 38 48-8M0013613 48-8M0013614
18 30 48-8M0014677 48-8M0014678
17 38 48-8M0013643 48-8M0013644
17.75 30 48-8M0014707 48-8M0014708
16.75 38 48-8M0013673 48-8M0013674
17.5 30 48-8M0014737 48-8M0014738
16.5 38 48-8M0013703 48-8M0013704
17.25 30 48-8M0014767 48-8M0014768
16.25 38 48-8M0013733 48-8M0013734
17 30 48-8M0014797 48-8M0014798
16 38 48-8M0013763 48-8M0013764
16.75 30 48-8M0014827 48-8M0014828
15.75 38 48-8M0013793 48-8M0013794
16.5 30 48-8M0014857 48-8M0014858
15.5 38 48-8M0013823 48-8M0013824
16.25 30 48-8M0014887 48-8M0014888
15.25 38 48-8M0013853 48-8M0013854
16 30 48-8M0014917 48-8M0014918
15 38 48-8M0013883 48-8M0013884
15.75 30 48-8M0014947 48-8M0014948
18 39 48-8M0013525 48-8M0013526
15.5 30 48-8M0014977 48-8M0014978
17.75 39 48-8M0013555 48-8M0013556
15.25 30 48-8M0015007 48-8M0015008
17.5 39 48-8M0013585 48-8M0013586
15 30 48-8M0015037 48-8M0015038
17.25 39 48-8M0013615 48-8M0013616
18 31 48-8M0014679 48-8M0014680
17 39 48-8M0013645 48-8M0013646
17.75 31 48-8M0014709 48-8M0014710
16.75 39 48-8M0013675 48-8M0013676
17.5 31 48-8M0014739 48-8M0014740
16.5 39 48-8M0013705 48-8M0013706
17.25 31 48-8M0014769 48-8M0014770
16.25 39 48-8M0013735 48-8M0013736
17 31 48-8M0014799 48-8M0014800
16 39 48-8M0013765 48-8M0013766
16.75 31 48-8M0014829 48-8M0014830
15.75 39 48-8M0013795 48-8M0013796
16.5 31 48-8M0014859 48-8M0014860
15.5 39 48-8M0013825 48-8M0013826
16.25 31 48-8M0014889 48-8M0014890
15.25 39 48-8M0013855 48-8M0013856
16 31 48-8M0014919 48-8M0014920
15 39 48-8M0013885 48-8M0013886
15.75 31 48-8M0014949 48-8M0014950
18 40 48-8M0013527 48-8M0013528
15.5 31 48-8M0014979 48-8M0014980
17.75 40 48-8M0013557 48-8M0013558
15.25 31 48-8M0015009 48-8M0015010
17.5 40 48-8M0013587 48-8M0013588
15 31 48-8M0015039 48-8M0015040
17.25 40 48-8M0013617 48-8M0013618
18 32 48-8M0014681 48-8M0014682
17 40 48-8M0013647 48-8M0013648
17.75 32 48-8M0014711 48-8M0014712
16.75 40 48-8M0013677 48-8M0013678
17.5 32 48-8M0014741 48-8M0014742
16.5 40 48-8M0013707 48-8M0013708
17.25 32 48-8M0014771 48-8M0014772
16.25 40 48-8M0013737 48-8M0013738
17 32 48-8M0014801 48-8M0014802
16 40 48-8M0013767 48-8M0013768
16.75 32 48-8M0014831 48-8M0014832 MERCURY RACING PROPELLER CHARTS
15.75 40 48-8M0013797 48-8M0013798
16.5 32 48-8M0014861 48-8M0014862
15.5 40 48-8M0013827 48-8M0013828
16.25 32 48-8M0014891 48-8M0014892
15.25 40 48-8M0013857 48-8M0013858
16 32 48-8M0014921 48-8M0014922
15 40 48-8M0013887 48-8M0013888
15.75 32 48-8M0014951 48-8M0014952
15.5 32 48-8M0014981 48-8M0014982
CNC Cleaver, Heat Treated SS 5 Blade, 18 Degree Rake ‑ 1100 15.25 32 48-8M0015011 48-8M0015012
HP 15 32 48-8M0015041 48-8M0015042
IIIA, IV, V, VI, VII SSM, NXT1, M8 18 33 48-8M0014683 48-8M0014684
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 17.75 33 48-8M0014713 48-8M0014714
(152mm) hub length 17.5 33 48-8M0014743 48-8M0014744
17.25 33 48-8M0014773 48-8M0014774
Diameter (Inches) Pitch LH Rotation RH Rotation 17 33 48-8M0014803 48-8M0014804
16.5 38 48-8M0099431 48-8M0099430 16.75 33 48-8M0014833 48-8M0014834
16.5 39 48-8M0112359 48-8M0112360 16.5 33 48-8M0014863 48-8M0014864
17 40 48-8M0085857 48-8M0085858 16.25 33 48-8M0014893 48-8M0014894
16.75 40 48-8M0108441 48-8M0108442 16 33 48-8M0014923 48-8M0014924
16.5 40 48-8M0092609 48-8M0092608 15.75 33 48-8M0014953 48-8M0014954
17 42 48-8M0083389 48-8M0083390
2019 US Accessories Guide 857
