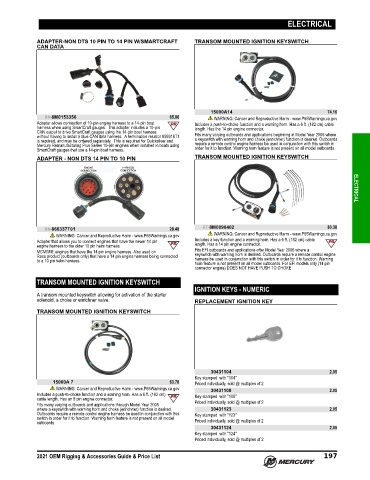

Page 210 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ELECTRICAL

ADAPTER-NON DTS 10 PIN TO 14 PIN W/SMARTCRAFT TRANSOM MOUNTED IGNITION KEYSWITCH
CAN DATA

15000A14 74.16
84-8M0153356 65.06 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Adapter allows connection of 10‑pin engine harness to a 14‑pin boat Includes a push‑to‑choke function and a warning horn. Has a 6 ft. (182 cm) cable
harness when using SmartCraft gauges. This adapter includes a 10‑pin length. Has the 14 pin engine connector.
CAN output to drive SmartCraft gauges using the 14‑pin boat harness
without having to install a blue CAN data harness. A termination resistor 859318T1 Fits many varying outboards and applications beginning in Model Year 2006 where
is required, and may be ordered separately. This is required for Quicksilver and a keyswitch with warning horn and choke (enrichner) function is desired. Outboards
Mercury Remanufacturing Plus Series 10‑pin engines when installed in boats using require a remote control engine harness be used in conjunction with this switch in
SmartCraft gauges that use a 14‑pin boat harness. order for it to function. Warning horn feature is not present on all model outboards.
ADAPTER - NON DTS 14 PIN TO 10 PIN TRANSOM MOUNTED IGNITION KEYSWITCH ELECTRICAL

84-866337T01 28.48 87-8M0090402 80.38
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Adapter that allows you to connect engines that have the newer 14 pin Includes a key function and a warning horn. Has a 6 ft. (182 cm) cable
engine harness to the older 10 pin helm harness length. Has a 14 pin engine connector.
MCM/MIE engines that have the 14 pin engine harness. Also used on Fits EFI outboards and applications after Model Year 2006 where a
Race product (outboards only) that have a 14 pin engine harness being connected keyswitch with warning horn is desired. Outboards require a remote control engine
to a 10 pin helm harness. harness be used in conjunction with this switch in order for it to function. Warning
horn feature is not present on all model outboards. For EFI models only (14 pin
connector engine) DOES NOT HAVE PUSH TO CHOKE
TRANSOM MOUNTED IGNITION KEYSWITCH
IGNITION KEYS - NUMERIC
A transom mounted keyswitch allowing for activation of the starter
solenoid, a choke or enrichner valve. REPLACEMENT IGNITION KEY

TRANSOM MOUNTED IGNITION KEYSWITCH

30431104 2.05
Key stamped with "104"
15000A 7 63.78 Priced individually, sold @ multiples of 2
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 30431108 2.05
Includes a push‑to‑choke function and a warning horn. Has a 6 ft. (182 cm) Key stamped with "108"
cable length. Has an 8 pin engine connector.
Fits many varying outboards and applications through Model Year 2005 Priced individually, sold @ multiples of 2
where a keyswitch with warning horn and choke (enrichner) function is desired. 30431123 2.05
Outboards require a remote control engine harness be used in conjunction with this Key stamped with "123"
switch in order for it to function. Warning horn feature is not present on all model
outboards. Priced individually, sold @ multiples of 2
30431124 2.05
Key stamped with "124"
Priced individually, sold @ multiples of 2

2021 OEM Rigging & Accessories Guide & Price List 197
