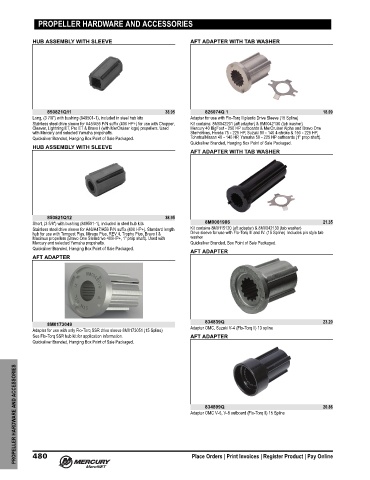

P. 493

PROPELLER HARDWARE AND ACCESSORIES


            HUB ASSEMBLY WITH SLEEVE                            AFT ADAPTER WITH TAB WASHER












                 850821Q11                              38.95        826074Q 1                              18.09
            Long, (3 7/8") with bushing (849501‑1), included in steel hub kits  Adapter for use with Flo‑Torq II plastic Drive Sleeve (15 Spline)
            Stainless steel drive sleeve for A45/A55 P/N suffix (400 HP+) for use with Chopper,  Kit contains: 8M0042201 (aft adapter) & 8M0042130 (tab washer)
            Cleaver, Lightning ET, Pro ET & Bravo I (with MerCruiser logo) propellers. Used  Mercury 40 BigFoot ‑ 250 HP outboards & MerCruiser Alpha and Bravo One
            with Mercury and selected Yamaha propshafts.        Sterndrives, Honda 75 ‑ 225 HP, Suzuki 90 ‑ 140 4‑stroke & 150 ‑ 225 HP,
            Quicksilver Branded, Hanging Box Point of Sale Packaged.  Tohatsu/Nissan 40 ‑ 140 HP, Yamaha 50 ‑ 225 HP outboards (1" prop shaft).
                                                                Quicksilver Branded, Hanging Box Point of Sale Packaged.
            HUB ASSEMBLY WITH SLEEVE
                                                                AFT ADAPTER WITH TAB WASHER











                 850821Q12                              38.95
            Short, (3 5/8") with bushing (849501‑1), included in steel hub kits  8M0061986                  21.35
            Stainless steel drive sleeve for A46/A47/A56 P/N suffix (400 HP+). Standard length  Kit contains 8M0115120 (aft adapter) & 8M0042130 (tab washer)
            hub for use with Tempest Plus, Mirage Plus, REV 4, Trophy Plus, Bravo I &  Drive sleeve for use with Flo‑Torq III and IV. (15 Spline)  Includes pin style tab
            Maximus propellers (Bravo One Sterndrive 400HP+, 1" prop shaft). Used with  washer
            Mercury and selected Yamaha propshafts.             Quicksilver Branded, Box Point of Sale Packaged.
            Quicksilver Branded, Hanging Box Point of Sale Packaged.
                                                                AFT ADAPTER
            AFT ADAPTER











                                                                     834839Q                                23.20
                 8M0173049
            Adapter for use with only Flo‑Torq SSR drive sleeve 8M0173051 (15 Spline)  Adapter OMC, Suzuki V‑4 (Flo‑Torq II) 13 spline
            See Flo‑Torq SSR hub kit for application information.  AFT ADAPTER
            Quicksilver Branded, Hanging Box Point of Sale Packaged.



      PROPELLER HARDWARE AND ACCESSORIES  480                   Adapter OMC V‑6, V‑8 outboard (Flo‑Torq II) 15 Spline  20.86






                                                                     834899Q
