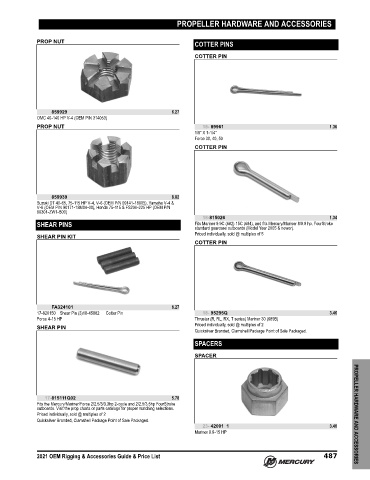

Page 500 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

PROPELLER HARDWARE AND ACCESSORIES

PROP NUT COTTER PINS

COTTER PIN

859929 6.27
OMC 40‑140 HP V‑4 (OEM P/N 314053)
PROP NUT 18- 89961 1.36
1/8" X 1‑1/4"
Force 30, 40, 50
COTTER PIN

859939 8.82
Suzuki DT 40‑65, 75‑115 HP V‑4, V‑6 (OEM P/N 09141‑18005), Yamaha V‑4 &
V‑6 (OEM P/N 90171‑18M04‑00), Honda 75‑115 & FS200‑225 HP (OEM P/N
90301‑ZW1‑B00)
18-815026 1.34
SHEAR PINS Fits Mariner 9.9C (682) 15C (684), and fits Mercury/Mariner 8/9.9 hp. FourStroke
standard gearcase outboards (Model Year 2005 & newer).
Priced individually, sold @ multiples of 5
SHEAR PIN KIT
COTTER PIN

FA324101 6.27
17‑820150 Shear Pin (3)18‑45882 Cotter Pin 18- 95295Q 3.46
Force 4‑15 HP Thruster (R, RL, RX, T series) Mariner 30 (689B)
Priced individually, sold @ multiples of 2
SHEAR PIN
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
SPACERS

SPACER

17-815111Q02 5.78
Fits the Mercury/Mariner/Force 2/2.5/3/3.3hp 2‑cycle and 2/2.5/3.5hp FourStroke
outboards. Visit the prop charts or parts catalogs for proper matching selections.
Priced individually, sold @ multiples of 2 PROPELLER HARDWARE AND ACCESSORIES
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
23- 42091 1 3.46
Mariner 9.9‑15 HP

2021 OEM Rigging & Accessories Guide & Price List 487
