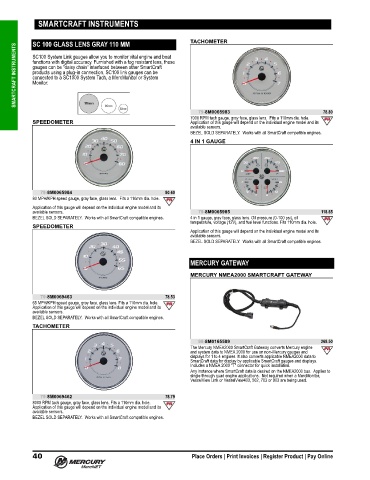

Page 53 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

SMARTCRAFT INSTRUMENTS TACHOMETER

SC 100 GLASS LENS GRAY 110 MM
SMARTCRAFT INSTRUMENTS SC100 System Link gauges allow you to monitor vital engine and boat

functions with digital accuracy. Furnished with a fog resistant lens, these
gauges can be "daisy chain" interfaced between other SmartCraft
products using a plug‑in connection. SC100 link gauges can be
connected to a SC1000 System Tach, a MercMonitor or System
Monitor.

79-8M0065983 78.80
7000 RPM tach gauge, gray face, glass lens. Fits a 110mm dia. hole.
SPEEDOMETER Application of this gauge will depend on the individual engine model and its
available sensors.
BEZEL SOLD SEPARATELY. Works with all SmartCraft compatible engines.
4 IN 1 GAUGE

79-8M0065984 80.60
80 MPH/KPH speed gauge, gray face, glass lens. Fits a 110mm dia. hole.
Application of this gauge will depend on the individual engine model and its
available sensors. 79-8M0065985 118.65
BEZEL SOLD SEPARATELY. Works with all SmartCraft compatible engines. 4 in 1 gauge, gray face, glass lens. Oil pressure (0‑100 psi), oil
temperature, voltage (12V), and fuel level functions. Fits 110mm dia. hole.
SPEEDOMETER
Application of this gauge will depend on the individual engine model and its
available sensors.
BEZEL SOLD SEPARATELY. Works with all SmartCraft compatible engines.

MERCURY GATEWAY

MERCURY NMEA2000 SMARTCRAFT GATEWAY

79-8M0069463 78.53
65 MPH/KPH speed gauge, gray face, glass lens. Fits a 110mm dia. hole.
Application of this gauge will depend on the individual engine model and its
available sensors.
BEZEL SOLD SEPARATELY. Works with all SmartCraft compatible engines.
TACHOMETER

98-8M0165589 268.50
The Mercury NMEA2000 SmartCraft Gateway converts Mercury engine
and system data to NMEA 2000 for use on non‑Mercury gauges and
displays for 1 to 4 engines. It also converts applicable NMEA2000 data to
SmartCraft data for display by applicable SmartCraft gauges and displays.
Includes a NMEA 2000 "T" connector for quick installation.
Any instance where SmartCraft data is desired on the NMEA2000 bus. Applies to
single through quad engine applications. Not required when a MercMonitor,
VesselView Link or VesselView403, 502, 703 or 903 are being used.

79-8M0069462 78.79
8000 RPM tach gauge, gray face, glass lens. Fits a 110mm dia. hole.
Application of this gauge will depend on the individual engine model and its
available sensors.
BEZEL SOLD SEPARATELY. Works with all SmartCraft compatible engines.

40 Place Orders | Print Invoices | Register Product | Pay Online
