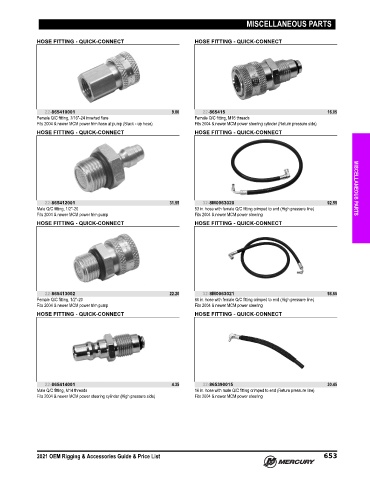

Page 666 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477
P. 666
MISCELLANEOUS PARTS
HOSE FITTING - QUICK-CONNECT HOSE FITTING - QUICK-CONNECT
22-865410001 9.00 22-865415 16.05
Female Q/C fitting, 7/16"‑24 inverted flare Female Q/C fitting, M16 threads
Fits 2004 & newer MCM power trim hose at pump (Black ‑ up hose) Fits 2004 & newer MCM power steering cylinder (Return pressure side)
HOSE FITTING - QUICK-CONNECT HOSE FITTING - QUICK-CONNECT
22-865412001 31.55 32-8M0063020 92.55 MISCELLANEOUS PARTS
Male Q/C fitting, 1/2"‑20 53 in. hose with female Q/C fitting crimped to end (High pressure line)
Fits 2004 & newer MCM power trim pump Fits 2004 & newer MCM power steering
HOSE FITTING - QUICK-CONNECT HOSE FITTING - QUICK-CONNECT
22-865413002 22.20 32-8M0063021 98.55
Female Q/C fitting, 1/2"‑20 60 in. hose with female Q/C fitting crimped to end (High pressure line)
Fits 2004 & newer MCM power trim pump Fits 2004 & newer MCM power steering
HOSE FITTING - QUICK-CONNECT HOSE FITTING - QUICK-CONNECT
22-865414001 4.35 32-865390015 30.45
Male Q/C fitting, M14 threads 16 in. hose with male Q/C fitting crimped to end (Return pressure line)
Fits 2004 & newer MCM power steering cylinder (High pressure side) Fits 2004 & newer MCM power steering
2021 OEM Rigging & Accessories Guide & Price List 653
