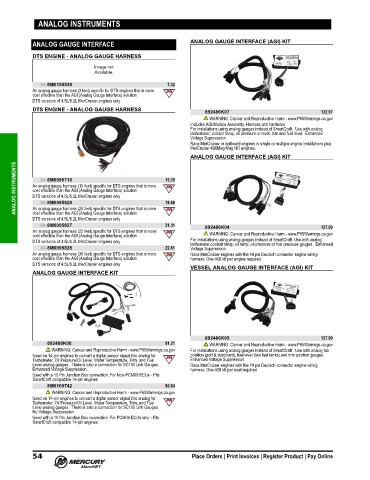

Page 67 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ANALOG INSTRUMENTS

ANALOG GAUGE INTERFACE ANALOG GAUGE INTERFACE (AGI) KIT

DTS ENGINE - ANALOG GAUGE HARNESS

84-8M0150539 7.32
An analog gauge harness (3 feet) specific for DTS engines that is more
cost effective than the AGI (Analog Gauge Interface) solution
DTS versions of 4.5L/6.2L MerCruiser engines only
DTS ENGINE - ANALOG GAUGE HARNESS 892486K07 132.97
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Includes AGI Module Assembly, Harness and hardware.
For installations using analog gauges instead of SmartCraft. Use with analog
tachometer, coolant temp, oil pressure or level, trim and fuel level. Enhanced
Voltage Suppression.
Race MerCruiser or outboard engines in single or multiple engine installations plus
MerCruiser 496Mag/Mag HO engines.
ANALOG GAUGE INTERFACE (AGI) KIT
ANALOG INSTRUMENTS An analog gauge harness (15 feet) specific for DTS engines that is more 15.35

84-8M0095716

cost effective than the AGI (Analog Gauge Interface) solution
DTS versions of 4.5L/6.2L MerCruiser engines only
18.68
84-8M0095826
An analog gauge harness (20 feet) specific for DTS engines that is more
cost effective than the AGI (Analog Gauge Interface) solution
DTS versions of 4.5L/6.2L MerCruiser engines only
84-8M0095827 21.31 892486K04 127.09
An analog gauge harness (25 feet) specific for DTS engines that is more
cost effective than the AGI (Analog Gauge Interface) solution WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
DTS versions of 4.5L/6.2L MerCruiser engines only For installations using analog gauges instead of SmartCraft. Use with analog
tachometer,coolant temp, oil temp, oil pressure or fuel pressure gauges. Enhanced
84-8M0095828 22.81 Voltage Suppression.
An analog gauge harness (30 feet) specific for DTS engines that is more Race MerCruiser engines with the 14 pin Deutsch connector engine wiring
cost effective than the AGI (Analog Gauge Interface) solution harness. One AGI kit per engine required.
DTS versions of 4.5L/6.2L MerCruiser engines only
VESSEL ANALOG GAUGE INTERFACE (AGI) KIT
ANALOG GAUGE INTERFACE KIT

892486K05 127.09
892486K08 91.21 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov For installations using analog gauges instead of SmartCraft. Use with analog tab
Used on 14‑pin engines to convert a digital sensor signal into analog for position (port & starboard), fuel level (two fuel tanks) and trim position gauges.
Tachometer, Oil Pressure/Oil Level, Water Temperature, Trim, and Fuel Enhanced Voltage Suppression.
Level analog gauges. There is also a connection for SC100 Link Gauges. Race MerCruiser engines with the 14 pin Deutsch connector engine wiring
Enhanced Voltage Suppression. harness. One AGI kit per boat required.
Used with a 10 Pin Junction Box connection, For Non‑PCM09 ECUs ‑ Fits
SmartCraft compatible 14‑pin engines
8M0109742 90.64
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Used on 14‑pin engines to convert a digital sensor signal into analog for
Tachometer, Oil Pressure/Oil Level, Water Temperature, Trim, and Fuel
Level analog gauges. There is also a connection for SC100 Link Gauges.
No Voltage Suppression.
Used with a 10 Pin Junction Box connection. For PCM09 ECUs only ‑ Fits
SmartCraft compatible 14‑pin engines.
