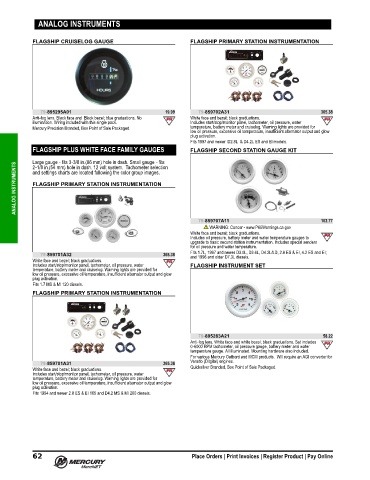

Page 75 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ANALOG INSTRUMENTS

FLAGSHIP CRUISELOG GAUGE FLAGSHIP PRIMARY STATION INSTRUMENTATION

79-895295A01 19.99 79-859702A31 365.38
Anti‑fog lens. Black face and Black bezel; blue graduations. No White face and bezel; black graduations.
illumination. Wiring included with this single pack. Includes start/stop/monitor panel, tachometer, oil pressure, water
Mercury Precision Branded, Box Point of Sale Packaged. temperature, battery meter and cruiselog. Warning lights are provided for
low oil pressure, excessive oil temperature, insufficient alternator output and glow
plug activation.
Fits 1997 and newer D2.8L & D4.2L ES and EI models.
FLAGSHIP PLUS WHITE FACE FAMILY GAUGES FLAGSHIP SECOND STATION GAUGE KIT

Large gauge ‑ fits 3‑3/8 in.(86 mm) hole in dash. Small gauge ‑ fits
ANALOG INSTRUMENTS FLAGSHIP PRIMARY STATION INSTRUMENTATION
2‑1/8 in.(54 mm) hole in dash. 12 volt system. Tachometer selection
and settings charts are located following the color group images.

79-859707A11 102.77
WARNING: Cancer - www.P65Warnings.ca.gov
White face and bezel; black graduations.
Includes oil pressure, battery meter and water temperature gauges to
upgrade to basic second station instrumentation. Includes special senders
for oil pressure and water temperature.
Fits 1.7L, 1997 and newer D3.0L, D3.6L, D4.2L/LD, 2.8 ES & EI, 4.2 ES and EI;
79-859701A32 365.38 and 1996 and older D7.3L diesels.
White face and bezel; black graduations.
Includes start/stop/monitor panel, tachometer, oil pressure, water FLAGSHIP INSTRUMENT SET
temperature, battery meter and cruiselog. Warning lights are provided for
low oil pressure, excessive oil temperature, insufficient alternator output and glow
plug activation.
Fits 1.7 MS & MI 120 diesels.
FLAGSHIP PRIMARY STATION INSTRUMENTATION

79-895283A21 58.22
Anti‑fog lens. White face and white bezel; black graduations. Set includes
0‑6000 RPM tachometer, oil pressure gauge, battery meter and water
temperature gauge. All illuminated. Mounting hardware also included.
For various Mercury Outbord and MCM products. Will require an AGI converter for
79-859701A31 365.38 Verado (Ditgital) engines.
White face and bezel; black graduations. Quicksilver Branded, Box Point of Sale Packaged.
Includes start/stop/monitor panel, tachometer, oil pressure, water
temperature, battery meter and cruiselog. Warning lights are provided for
low oil pressure, excessive oil temperature, insufficient alternator output and glow
plug activation.
Fits 1994 and newer 2.8 ES & EI 165 and D4.2 MS & MI 200 diesels.

62 Place Orders | Print Invoices | Register Product | Pay Online
