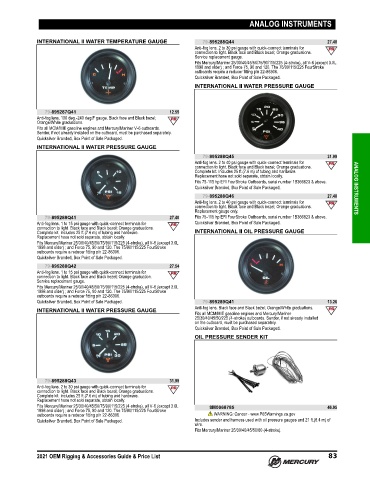

Page 96 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ANALOG INSTRUMENTS

INTERNATIONAL II WATER TEMPERATURE GAUGE 79-895288Q44 27.40
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; Orange graduations.
Service replacement gauge.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
INTERNATIONAL II WATER PRESSURE GAUGE

79-895287Q41 12.55
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Black bezel;
Orange/White graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner V‑6 outboards.
Sender, if not already installed on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
INTERNATIONAL II WATER PRESSURE GAUGE
79-895288Q45 31.99
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; Orange graduations.
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged. ANALOG INSTRUMENTS
79-895288Q46 27.40
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; Orange graduations.
Replacement gauge only.
79-895288Q41 27.40 Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for Quicksilver Branded, Box Point of Sale Packaged.
connection to light. Black face and Black bezel; Orange graduations.
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware. INTERNATIONAL II OIL PRESSURE GAUGE
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q42 27.54
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; Orange graduation.
Service replacement gauge.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged. 79-895289Q41 13.26
Anti‑fog lens. Black face and Black bezel; Orange/White graduations.
INTERNATIONAL II WATER PRESSURE GAUGE
Fits all MCM/MIE gasoline engines and Mercury/Mariner
25/30/40/45/50/225 (4‑stroke) outboards. Sender, if not already installed
on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
OIL PRESSURE SENDER KIT

79-895288Q43 31.99
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; Orange graduations.
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L 8M0068785 46.95
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306. WARNING: Cancer - www.P65Warnings.ca.gov
Quicksilver Branded, Box Point of Sale Packaged. Includes sender and harness used with oil pressure gauges and 21 ft.(6.4 m) of
wire.
Fits Mercury/Mariner 25/30/40/45/50/60 (4‑stroke).

2021 OEM Rigging & Accessories Guide & Price List 83
