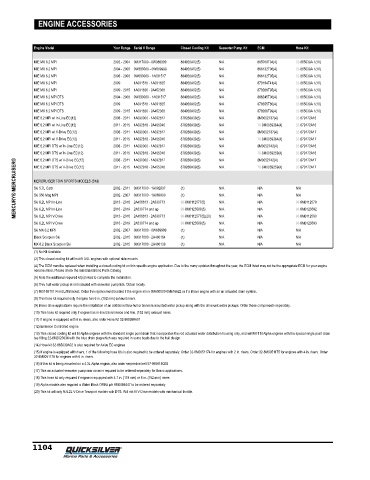

Page 1113 - Quicksilver Product Guide (2020) - 8M0163242

ENGINE ACCESSORIES

Engine Model Year Range Serial # Range Closed Cooling Kit Seawater Pump Kit ECM Hose Kit

MIE MX 6.2 MPI 2002 - 2004 0M317000 - 0W389999 864920A02(5) N/A 865009T04(4) 32-865039A 1(10)
MIE MX 6.2 MPI 2004 - 2006 0W390000 - 0W689999 864920A02(5) N/A 866132T06(4) 32-865039A 1(10)
MIE MX 6.2 MPI 2006 - 2008 0W690000 - 1A091517 864920A02(5) N/A 866132T05(4) 32-865039A 1(10)
MIE MX 6.2 MPI 2009 1A091518 - 1A091825 864920A02(5) N/A 879194T41(4) 32-865039A 1(10)
MIE MX 6.2 MPI 2009 - 2015 1A091826 - 2A452368 864920A02(5) N/A 879288T95(4) 32-865039A 1(10)
MIE MX 6.2 MPI DTS 2004 - 2008 0W390000 - 1A091517 864920A02(5) N/A 866245T06(4) 32-865039A 1(10)
MIE MX 6.2 MPI DTS 2009 1A091518 - 1A091825 864920A02(5) N/A 879355T80(4) 32-865039A 1(10)
MIE MX 6.2 MPI DTS 2009 - 2015 1A091826 - 2A452368 864920A02(5) N/A 879288T99(4) 32-865039A 1(10)
MIE 6.2 MPI w/ In-Line EC(12) 2008 - 2011 1A090000 - 1A092817 879288A39(5) N/A 8M0052737(4) 32-879172A16
MIE 6.2 MPI w/ In-Line EC(12) 2011 - 2015 1A092818 - 2A455246 879288A39(5) N/A 78-8M0059364(4) 32-879172A16
MIE 6.2 MPI w/ V-Drive EC(12) 2008 - 2011 1A090000 - 1A092817 879288A39(5) N/A 8M0052737(4) 32-879172A17
MIE 6.2 MPI w/ V-Drive EC(12) 2011 - 2015 1A092818 - 2A455246 879288A39(5) N/A 78-8M0059364(4) 32-879172A17
MIE 6.2 MPI DTS w/ In-Line EC(12) 2008 - 2011 1A090000 - 1A092817 879288A39(5) N/A 8M0052742(4) 32-879172A16
MIE 6.2 MPI DTS w/ In-Line EC(12) 2011 - 2015 1A092818 - 2A455246 879288A39(5) N/A 78-8M0059259(4) 32-879172A16
1A090000 - 1A092817
879288A39(5)
2008 - 2011
N/A
8M0052742(4)
MIE 6.2 MPI DTS w/ V-Drive EC(12)
32-879172A17
MERCURY® MERCRUISER® MERCRUISER TOW SPORTS MODELS (SKI) 2002 - 2011 0M317000 - 1A092837 (1) N/A N/A N/A
2011 - 2015
32-879172A17
78-8M0059259(4)
MIE 6.2 MPI DTS w/ V-Drive EC(12)
1A092818 - 2A455246
N/A
879288A39(5)
Ski 5.7L Carb
(1)
N/A
N/A
Ski 350 Mag MPI
2002 - 2007 0M317000 - 1A089999
N/A
98-8M0112579
N/A
2015 - 2016 2A456613 - 2A530773
Ski 6.2L MPI In-Line
98-8M0112577(5)
N/A
Ski 6.2L MPI In-Line
98-8M0112577(5)(20)
2015 - 2016 2A456613 - 2A530773
N/A
98-8M0112580
Ski 6.2L MPI V-Drive
N/A
Ski 6.2L MPI V-Drive 2016 - 2019 2A530774 and up 98-8M0123588(5) N/A N/A 98-8M0123592
2016 - 2019 2A530774 and up
98-8M0123588(5)
N/A
N/A
98-8M0123593
Ski MX 6.2 MPI 2002 - 2007 0M317000 - 0W689999 (1) N/A N/A N/A
Black Scorpion Ski 2002 - 2015 0M317000 - 2A460164 (1) N/A N/A N/A
MX 6.2 Black Scorpion Ski 2002 - 2015 0M317000 - 2A460138 (1) N/A N/A N/A
(1) No Kit Available
(2) This closed cooling kit will not fit 3.0L engines with optional side mounts
(4) The ECM must be replaced when installing a closed cooling kit on this specific engine application. Due to the many updates throughout the year, the ECM listed may not be the appropriate ECM for your engine
serial number. Please check the latest Electronic Parts Catalog
(5) Note the additional required kit(s) listed to complete the installation.
(6) Thru hull water pickup is not included with seawater pump kits. Obtain locally.
(7) 865188T01 Front Lift Bracket: Order this replacement bracket if the engine s/n is 0M600000-0M616622 or if a Bravo engine with an air actuated drain system.
(8) This hose kit required only if engine has 6 in. (152 mm) exhaust risers.
(9) Bravo drive applications require the installation of an additional thru-hull or transom mounted water pickup along with the drive unit water pickups. Order these components separately.
(10) This hose kit required only if engine has in-line transmission and 6 in. (152 mm) exhaust risers.
(11) If engine is equipped with 6 in. risers, also order Hose Kit 32-865998A01
(12) Emission Controlled engine
(13) This closed cooling kit will fit Alpha engines with the standard single point drain that incorporates the rod actuated water distribution housing only, and will NOT fit Alpha engines with the special single point drain
tee fitting 22-8M2020634 with the blue drain plug which was required in some boats due to the hull design.
(14) Hose kit 32-865039A02 is also required for Axius EC engines
(15) If engine is equipped with risers, 1 of the following hose kits is also required to be ordered separately. Order 32-8M0051174 for engines with 2 in. risers. Order 32-8M0051175 for engines with 4 in. risers. Order
32-8M0051176 for engines with 6 in. risers.
(16) If this kit is being mounted on a 4.3L Alpha engine, also order serpentine belt 57-865615Q03
(17) This air actuated seawater pump rear cover is required to be ordered separately for Bravo applications.
(18) This hose kit only required if engine is equipped with 4.7 in. (119 mm) or 6 in. (152 mm) risers
(19) Alpha models also required a Water Block Off Kit p/n 8M0095447 to be ordered separately
(20) This kit will only fit 6.2L V-Drive Towsport models with DTS. Will not fit V-Drive models with mechanical throttle.
1104
